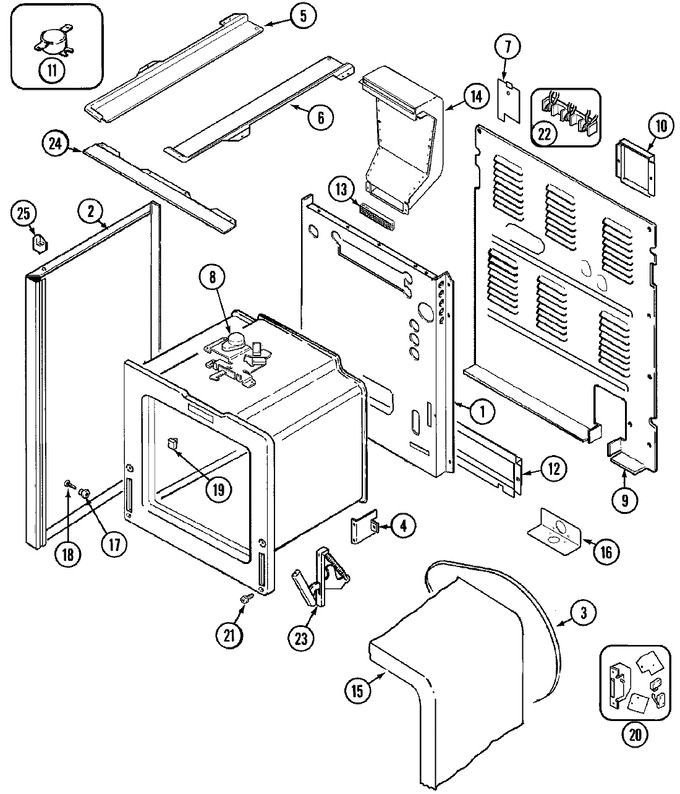

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005396 | Back, Main | 10 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 10 |
|
- | ||||
| 2 | 74003283 | Panel, Side (blk) | 10 |
|
- | ||||
| 3 | 74003385 | Strap, Insulation | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 5 | 74003379 | Box, Burner (lt) | 10 |
|
- | ||||
| 6 | 74003378 | Box, Burner (rt) | 10 |
|
- | ||||
| 7 | 74004527 | Retainer, Insul. Door Lock | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74003559 | Latch, Door Lock | 10 |
|
- | ||||
| 8 | 74005575 | Door Lock Motor Assy. | 12 |
|
$ 152.76 | ||||
| 9 | 74005397 | Cover, Wire | 10 |
|
- | ||||
| 10 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 11 | 7403P160-60 | Switch, Hi-limit | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74001137 | Box, Vent (magnetron Blower) | 10 |
|
- | ||||
| 13 | 74001138 | Eliminator, Smoke | 10 |
|
- | ||||
| 14 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 14 | 4006W123-45 | Vent Box Assy. | 10 |
|
- | ||||
| 15 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 15 | 74005400 | Insulation, Wrap----na | 10 |
|
- | ||||
| 16 | W10190166 | Bracket, Power Supply (Replaces: 74004180) | 10 |
|
$ 8.32 | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 18 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 19 | 74001139 | Bumper, Door | 10 |
|
- | ||||
| 20 | 74001140 | Switch Assy, Interlock (rt) | 10 |
|
- | ||||
| 20 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 20 | 74005398 | Switch Assy, Interlock (lt) | 10 |
|
- | ||||
| 21 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 22 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 23 | 74005399 | Hinge, Door | 10 |
|
$ 27.62 | ||||
| 24 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 74003384 | Bracket, Main Top | 10 |
|
- | ||||
| 25 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 25 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- |
