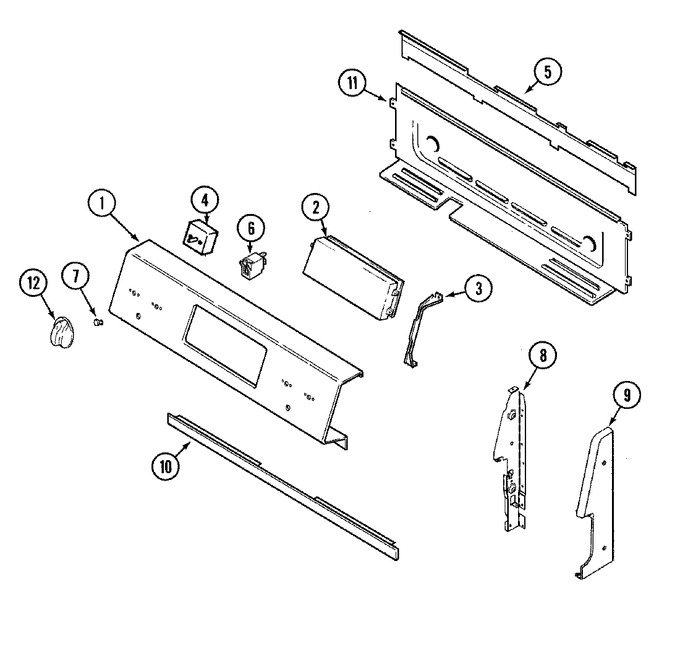

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005387 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 74005428 | Overlay, Clock (wht) | 10 |
|
- | ||||
| 2 | 74005389 | Clock W/overlay (wht) | 10 |
|
- | ||||
| 3 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 3 | 74005388 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | 74002144 | Switch, Dual Element | 10 |
|
- | ||||
| 5 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74006376 | Extension, Control Panel | 13 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 9 | 74004549 | Cap, End (lt-wht) | 10 |
|
$ 32.19 | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 9 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 9 | 74004548 | Cap, End (rt-wht) | 10 |
|
$ 6.77 | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | WP74003611 | Knob (wht) (Replaces: 74003611) | 10 |
|
$ 17.45 | ||||
| 13 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 14 | 74005418 | Harness, Panel/top | 10 |
|
- | ||||
| 14 | 74005455 | Harness, Element | 10 |
|
- | ||||
| 14 | 74005427 | Harness, Main | 10 |
|
- | ||||
| 14 | 74005391 | Harness, Sensor/latch | 10 |
|
- | ||||
| 14 | 74005390 | Harness, Pedestal | 10 |
|
- | ||||
| 15 | 74005247 | Manual, Use & Care (trilingual | 10 |
|
- | ||||
| 15 | 74005248 | Cookbook (english) | 10 |
|
- | ||||
| 15 | 74005501 | Cookbook (frch) | 10 |
|
- | ||||
| 16 | 16010225 | Manual, Service-accellis 2x | 10 |
|
- |
