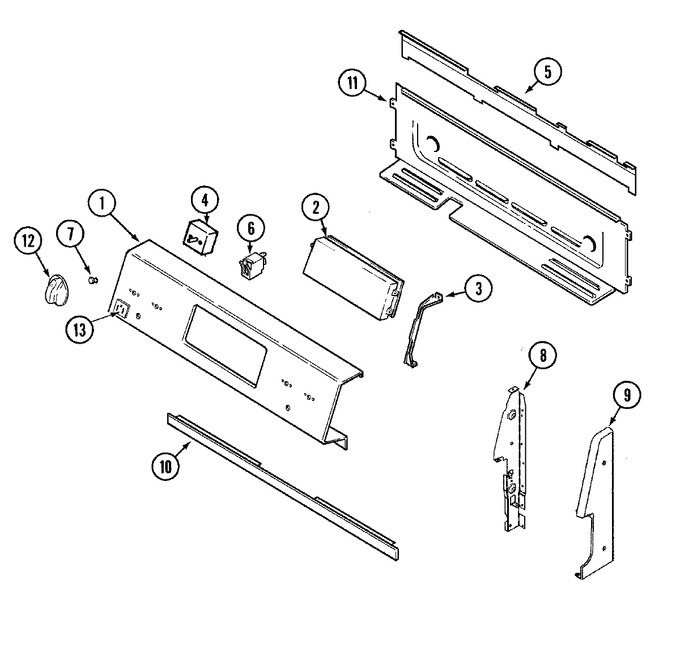

02 - Control Panel
03 - Door/drawer (acq, Acw)
04 - Microwave Components
05 - Oven/base
06 - Stirrer Assembly
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005537 | Panel, Control (bsq)----na | 10 |
|
- | ||||
| 2 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 2 | 74005422 | Clock W/overlay (bsq) | 10 |
|
- | ||||
| 2 | 74005429 | Overlay, Clock (bsq) | 10 |
|
- | ||||
| 3 | 98008169 | Screw (8abx3/8) Bsq (Replaces: 74004985) | 10 |
|
- | ||||
| 3 | 74005388 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | 74002144 | Switch, Dual Element | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74006376 | Extension, Control Panel | 11 |
|
- | ||||
| 5 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 8 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 9 | 74005237 | Cap, End (lt-bsq) | 10 |
|
- | ||||
| 9 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 9 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 9 | 74005236 | Cap, End (rt-bsq) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 11 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74005143 | Knob, Switch (bsq) | 10 |
|
- | ||||
| 13 | 71003070 | Breaker, Circuit (blk) | 10 |
|
- | ||||
| 13 | 74005144 | Receptacle, Outlet (bsq) | 10 |
|
- | ||||
| 14 | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| 15 | 74005540 | Harness, Secondary (lt) | 10 |
|
- | ||||
| 15 | 74005539 | Harness, Element | 10 |
|
- | ||||
| 15 | 74005538 | Harness, Main | 10 |
|
- | ||||
| 15 | 74005515 | Harness, Door Lock | 10 |
|
- | ||||
| 15 | 74005418 | Harness, Panel/top | 10 |
|
- | ||||
| 15 | 74005391 | Harness, Sensor/latch | 10 |
|
- | ||||
| 15 | 74005541 | Harness, Primary (rt) | 10 |
|
- | ||||
| 15 | 74005390 | Harness, Pedestal | 10 |
|
- | ||||
| 16 | 74005501 | Cookbook (frch) | 10 |
|
- | ||||
| 16 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 16 | 74005248 | Cookbook (english) | 10 |
|
- | ||||
| 16 | 74005247 | Manual, Use & Care (trilingual | 10 |
|
- |
