SELECT A DIAGRAM

01 - Body


02 - Control Panel

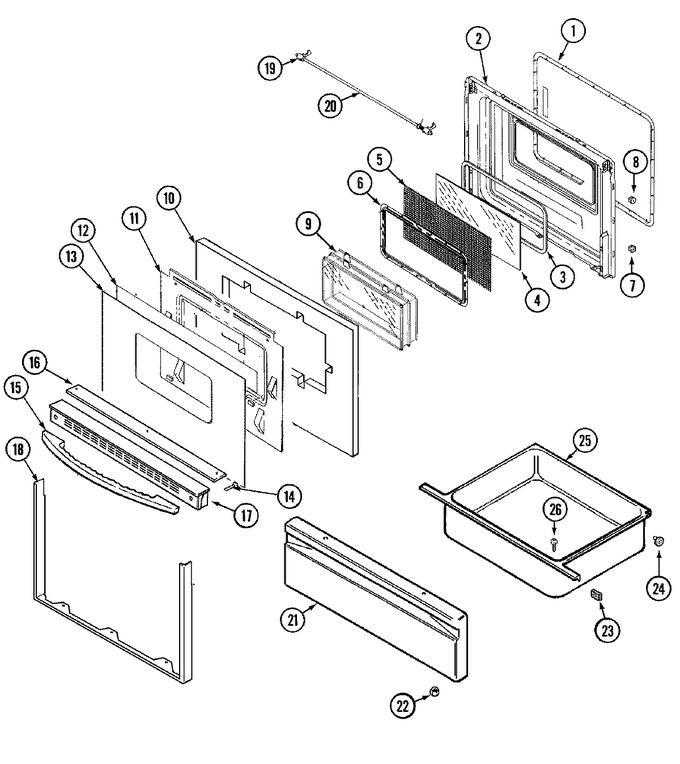

03 - Door/drawer (acq, Acw)


04 - Microwave Components


05 - Oven/base


06 - Stirrer Assembly


07 - Top Assembly


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7201P059-60		Gasket, Oven Door	10	Appelez-nous	-
2	74005406		Lining, Door	10	Appelez-nous	-
3	74001106		Gasket, Window	10	Appelez-nous	-
4	7902P392-60		Glass, Inner	10	Appelez-nous	-
5	74001107		Screen, Inner Glass	10	Appelez-nous	-
6	74001108		Retainer, Screen----na	10	Appelez-nous	-
6	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
7	74003643		Nut, Snap (square-blk)	10			$ 8.02
8	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
8	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
9	74001109		Window Assy.	10	Appelez-nous	-
9	74005410		Support Assy, Window	10	Appelez-nous	-
10	74005412		Insulation, Door	10	Appelez-nous	-
11	74005408		Baffle, Door	10	Appelez-nous	-
12	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
13	74005409		Glass, Door (outer-wht)	10	Appelez-nous	-
14	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
15	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
15	74003620		Handle, Door (wht)	10			$ 89.87
16	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
16	74001278		Screw (wht)	10			$ 5.83
17	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	WP74003653		Trim, Door Top (wht)----s   (Replaces: 74004560)	10			$ 189.23
18	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74004325		Frame, Door (wht)	10	Appelez-nous	-
19	74001168		Washer	10	Appelez-nous	-
19	74005547		Lever, Switch Activator (rt)	10	Appelez-nous	-
19	74005548		Lever, Switch Activator (lt)	10	Appelez-nous	-
19	74001112		Spring	10	Appelez-nous	-
20	74001113		Shaft, Lever	10	Appelez-nous	-
21	74003399		Panel, Drawer (wht)	10	Appelez-nous	-
21	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
23	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
24	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
24	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
24	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
25	71003042		Drawer, Storage	10	Appelez-nous	-
26	WP7101P072-60		Screw, Panel   (Replaces: 74004310)	10			$ 6.77

    View Diagram in Separate Window       Print Part List
