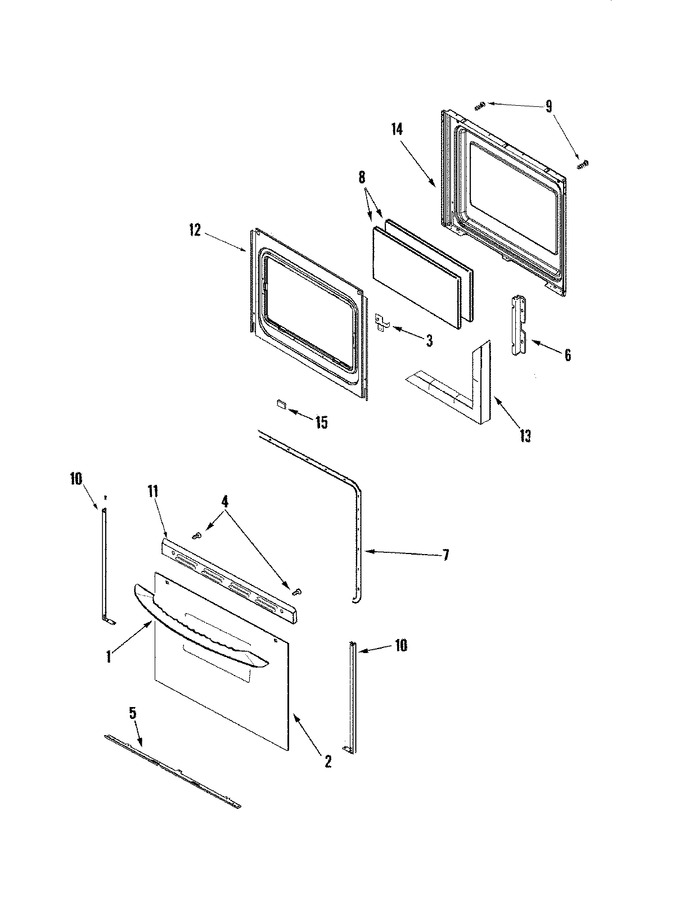

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011777		Handle, Door (blk)	16			$ 210.30
1	74011777		Handle, Door (blk)   (Replaces: 74011108)	14			$ 210.30
1	WP74011767		Handle, Door (blk)   (Replaces: 74008941)	10			$ 225.61
2	12002393		Kit, Door Glass (w/tape-wht)	10			$ 133.89
2	12002362		Kit, Door Glass (w/tape-blk)	10			$ 122.82
2	12002394		Kit, Door Glass (w/tape-bsq)	10	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	3801F832-45		Bracket, Door Handle (lt)   (Replaces: 74009699)	10			$ 19.12
3	3801F831-45		Bracket, Door Handle (rt)   (Replaces: 74009698)	10			$ 19.17
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
4	WP74006515		Screw, Handle Mounting   (Replaces: 74011674)	16			$ 7.29
5	74009686		Support, Glass (blk)	10	Appelez-nous	-
6	74001844		Retainer, Glass	10	Appelez-nous	-
7	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74009025		Tape, Dbl Sided (blk)	10			$ 8.60
10	74009693		Trim, Door (blk-lt)	10	Appelez-nous	-
10	74009692		Trim, Door (blk-rt)	10	Appelez-nous	-
11	74009689		Trim, Door Top (blk)	10	Appelez-nous	-
12	74009528		Baffle, Oven Door	10	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
