SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Parts


03 - Door And Drawer Parts


04 - Top Venting Parts


05 - Internal Oven Parts


06 - Cooktop Burner Parts


07 - Triple Crown Burner

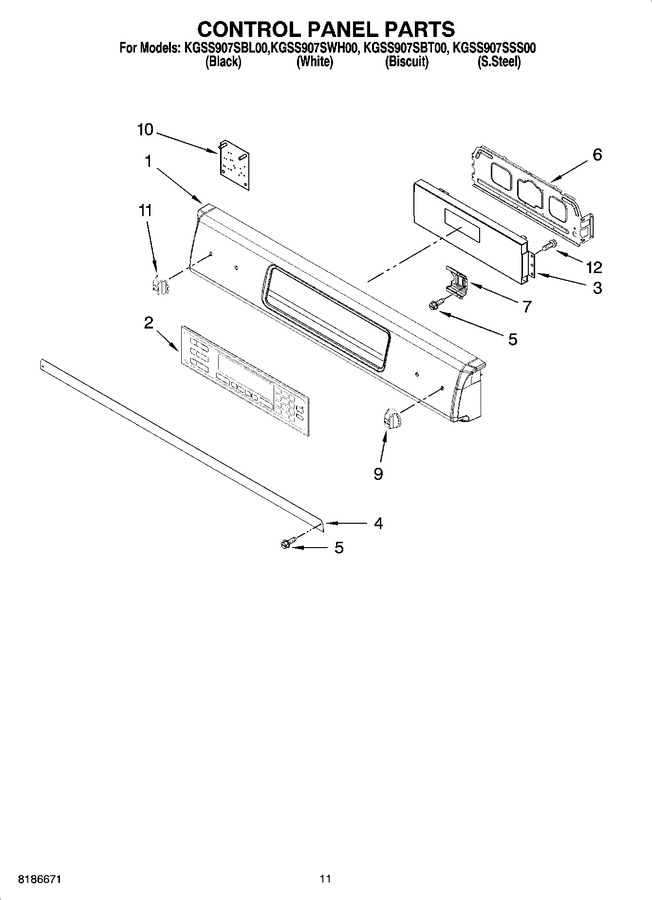

08 - Control Panel Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110715		Control Panel (biscuit)		Appelez-nous	-
1	W10110713		Control Panel (greenville Nickel)		Appelez-nous	-
1	W10110714		Control Panel (black)		Appelez-nous	-
1	W10110716		Control Panel (white)		Appelez-nous	-
2	WP9761566		Switch, Membrane   (Replaces: 9761566)			Immediately	$ 405.23
3	WP9762794		Control, Interface   (Replaces: 9762794)				$ 460.86
4	W10105370		Shield, Console				$ 69.83
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	9757409		Support, Gas Valve				$ 81.65
7	9761745		Brkt, Touchsensor				$ 40.75
9	9761569NP		Knob (3) (nickel Plated)		Appelez-nous	-
9	9761569BT		Knob (3) (biscuit)		Appelez-nous	-
9	W10851044		Knob (3) (white)   (Replaces: 9761569WH)				$ 20.10
9	9761569BL		Knob (3) (black)		Appelez-nous	-
10	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 354.47
11	W10130386		Knob, Tcb (1) (nickel Plated)   (Replaces: 9761779NP)				$ 85.28
11	9761779BT		Knob, Tcb (1) (biscuit)		Appelez-nous	-
11	9761779WH		Knob, Tcb (1) (white)		Appelez-nous	-
11	9761779BL		Knob, Tcb (1) (black)		Appelez-nous	-
12	9780271		Screw		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	814381		Hinge Pin Kit				$ 7.73
	WP4455352		Bracket, Blower (60mm)   (Replaces: 4455352)				$ 32.15
	9757426		Orific Kit				$ 36.11
	9759899		Bakeware, 5 Pc		Appelez-nous	-
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
	9756609		Gasket 19 X 388		Appelez-nous	-
	W10624584		Power Cord   (Replaces: 9758677)				$ 162.49
	W11447673		Anti-tip Assembly   (Replaces: 9782676)			Immediately	$ 28.64
	W10851603		Kit, Orific   (Replaces: 9757427)				$ 104.37
	9757785WH		Filler, Counter Top (white)				$ 187.25
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	9757785BL		Filler, Counter Top (black)				$ 102.15
	9757785BT		Filler, Counter Top (biscuit)				$ 75.54
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	261900		Paint, Spray (citrine White)				$ 51.34
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	313660		Clip, Ground Wire		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	4448664		Clamp				$ 18.35
	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
	W10157936		Harness, Wire (main)   (Replaces: W10110532)				$ 254.39
	WP9762904		Harness, Wire Bake/broil Ignit.   (Replaces: 9762904)				$ 117.87
	W10110533		Harness, Wire Warming Drawer				$ 305.83
	9756921		Harness, T.c.b.				$ 236.23
	9762921		Harness, Comm.				$ 126.17
	9763481		Harness, Ground Strap				$ 78.41
	W11209404		Harness, Wire (connector Cable)   (Replaces: 9762781)				$ 102.00
	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
	WP112432		Nut   (Replaces: 112432)				$ 7.16
	4450800		Screw, Ground				$ 11.55
	4452222		Spacer, Harness		Appelez-nous	-
	WP3400015		Screw, Ground   (Replaces: 3400015)				$ 6.47
