SELECT A DIAGRAM

01 - Cover

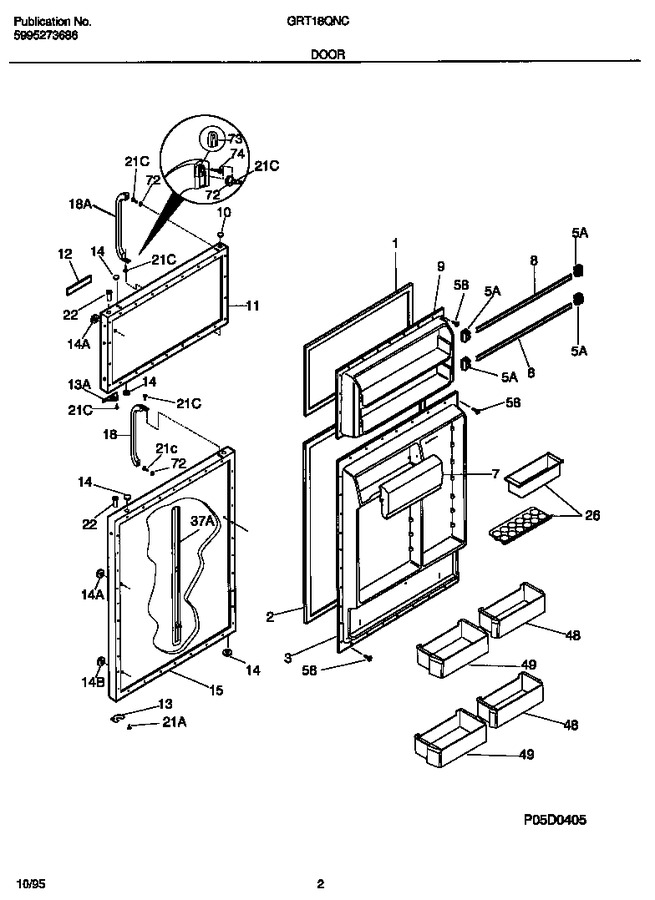

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
8	218027051		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917584		Panel-frzr Door, Almond, Rh, W/insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	215220330		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12	218409402		Frame-nameplate, Almond		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	218110902		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917588		Panel-refr Door, Almond, Rh, W/insul & Brace		Appelez-nous	-
18	218397505		Handle-door, Almond, W/block & Screw		Appelez-nous	-
18	218397502		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	3206153		Bearing-hinge		Appelez-nous	-
37	218397702		Trim-handle, 28.33``, Almond, With Mtg Locks		Appelez-nous	-
48	218286003		Bin-door				$ 230.16
49	5303310709		Bin-door, Gallon		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
*84800	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*84801	215782300		Lock-handle Trim,snap-in				$ 34.49
*84802	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
26A	3204522		Container-egg				$ 98.33
26B	215817806		Tray-egg, Accessory-not, Original Equip				$ 13.46
7A	215058108		Door-dairy, 12.96`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
