SELECT A DIAGRAM

01 - Cover

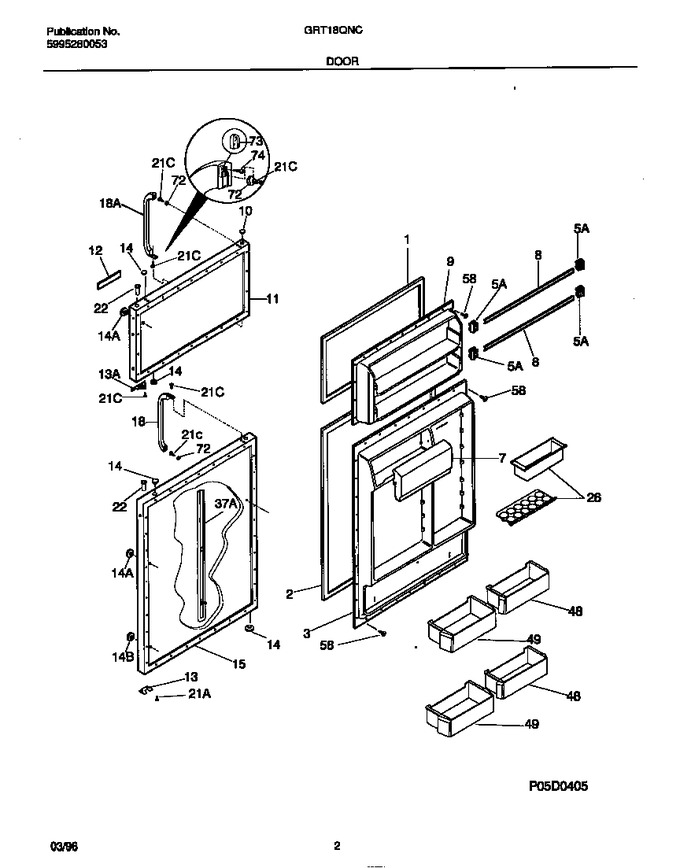

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
8	218027051		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917796		Panel-frzr Door, Almond, With Insulation		Appelez-nous	-
12	218531606		Nameplate Assy, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5308000255		Door Stop				$ 42.20
14	218110902		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917798		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218397505		Handle-door, Almond, W/block & Screw		Appelez-nous	-
18	218397502		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	218397702		Trim-handle, 28.33``, Almond, With Mtg Locks		Appelez-nous	-
48	218286003		Bin-door				$ 230.16
49	5303310709		Bin-door, Gallon		Appelez-nous	-
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
*20720	215782300		Lock-handle Trim,snap-in				$ 34.49
*20721	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*20722	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21B	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
7A	215058108		Door-dairy, 12.96`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
