SELECT A DIAGRAM

01 - Cover

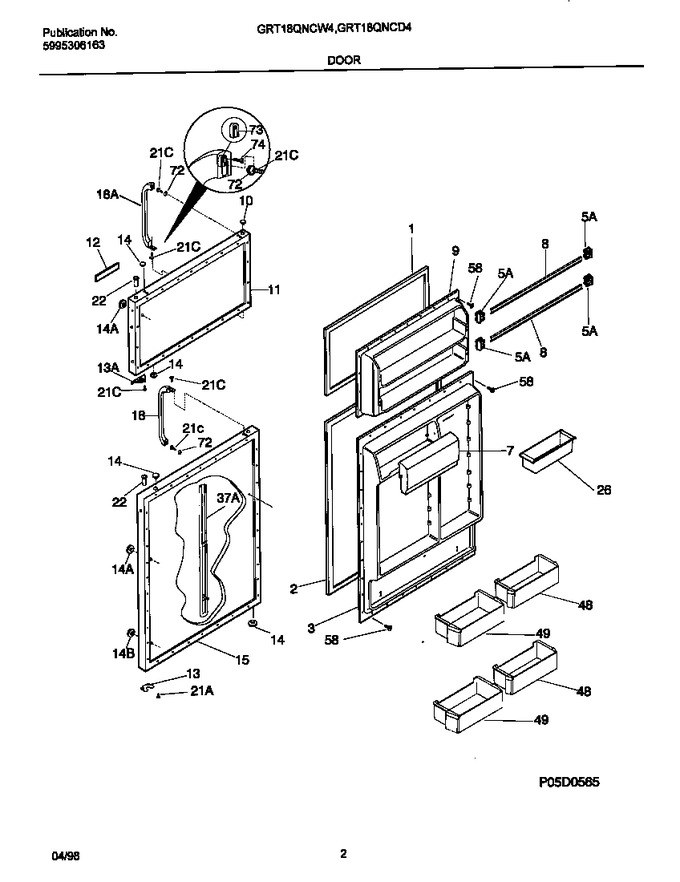

02 - Doors


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 218730606)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	215473602		Support-door Rack,rh/lh			Immediately	$ 11.58
7	215058108		Door-dairy, 12.96`` Wide		Appelez-nous	-
8	218027051		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917796		Panel-frzr Door, Almond, With Insulation		Appelez-nous	-
12	218531606		Nameplate Assy, Almond		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	5308000181		Plug-button, Almond		Appelez-nous	-
14	218110902		Plug-button, Almond, Refr Door Front, Upper		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
15	5303917798		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218397502		Handle-door, Almond, W/block & Screw		Appelez-nous	-
18	218397505		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	218397702		Trim-handle, 28.33``, Almond, With Mtg Locks		Appelez-nous	-
48	218286003		Bin-door				$ 230.16
49	5303310709		Bin-door, Gallon		Appelez-nous	-
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
*64080	5303001380		Screw		Appelez-nous	-
*64081	218468100		Magnet-nameplate		Appelez-nous	-
*64082	5304455852		Screw,hex Wshr Hd,8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
*64083	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
21B	5308007097		Screw, Cr Truss Head, 8-15a X 0.750		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218807701		Lock-handle Trim,stick-on		Appelez-nous	-
58A	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
58B	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
