Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7701P526-60 Handle, Door Special Order $ 129.23

2 7760P145-60 Door, Panel Appelez-nous -
3 W11233072 Screw   (Replaces: 7101P388-60) In-Stock Immediately $ 12.62

4 WP4159193 Screw   (Replaces: 7101P282-60) Special Order $ 4.29

5 7101P675-60 Screw, Handle Appelez-nous -
6 WPW10162384 Gasket, Door   (Replaces: W10162384) In-Stock Immediately $ 77.61

7 3801F886-51 Bracket, Glass Special Order $ 38.25

8 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.20

9 7902P472-60 Glass, Inner (2) Appelez-nous -
10 3804F140-80 Bracket, Inner Appelez-nous -
11 3601F395-51 Baffle, Door Appelez-nous -
12 7002P276-60 Insulation, Door Appelez-nous -
13 WP74001574 Nut, Snap   (Replaces: 7103P141-60) In-Stock Immediately $ 9.91

14 2402W371-19 Lining, Door Appelez-nous -
15 74011142 Hinge, Door (2)   (Replaces: 7106P141-60) In-Stock Immediately $ 108.22

16 3604F440-51 Shield, Door Appelez-nous -

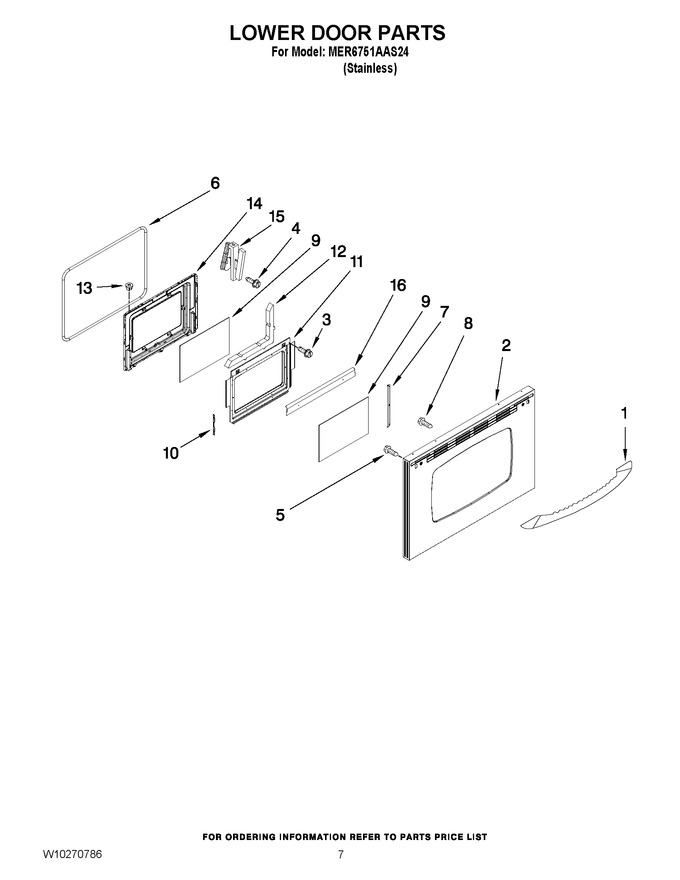

    View Diagram in Separate Window     Print Icon   Print Part List
