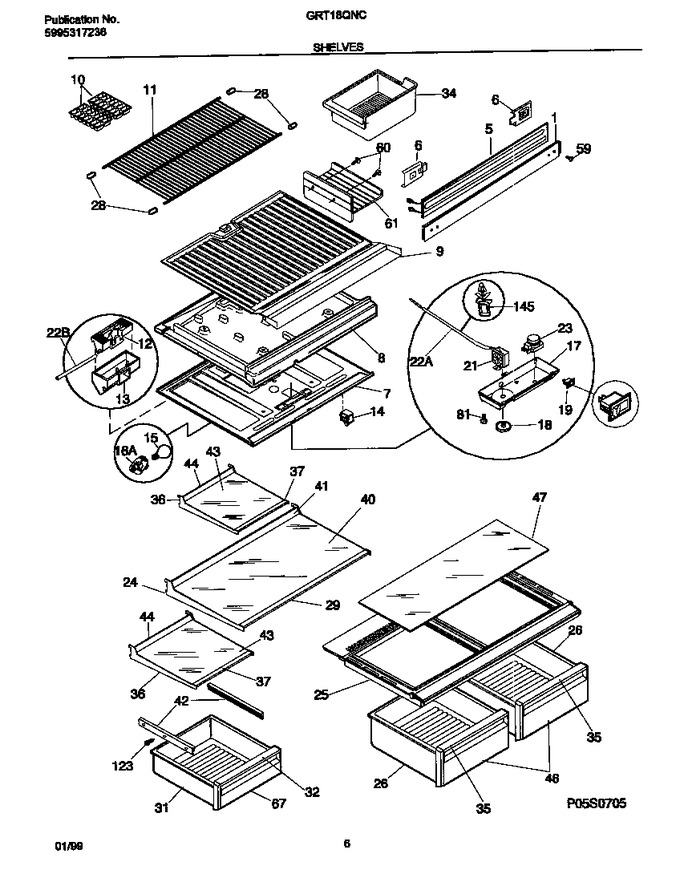

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874311		Mullion,almond ,1		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218872903		Divider,styrofoam ,w/foil Tape				$ 150.30
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
10	215667501		Tray-ice,plastic(option)			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature			Immediately	$ 164.57
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
23	215846602		Timer-defrost   (Replaces: 215267800)			Immediately	$ 28.20
24	215919161		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
29	218830348		Trim-glass Shelf,24.92`` ,front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
32	5303310715		Trim-meat Pan		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
35	5303310712		Trim-crisper Pan				$ 43.47
36	215919160		Frame-half Shelf, Cantilever		Appelez-nous	-
37	218830349		Trim-glass Shelf,12.13`` ,front		Appelez-nous	-
40	215723595		Glass-shelf, 24.88`` X 14.57``		Appelez-nous	-
41	215919803		Trim-glass Shelf, 24.92``, Rear		Appelez-nous	-
43	218390501		Glass-shelf,12.09`` X 14.57``		Appelez-nous	-
44	215919809		Trim-glass Shelf, 12.13``, Rear				$ 35.28
46	5303310711		Front-crisper Pan		Appelez-nous	-
47	215723596		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
60	218362501		Screw, Hex Washer Head, 8-18ab X 1-1/4   (Replaces: 218362500)				$ 12.05
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303310724		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*06174	5303001380		Screw		Appelez-nous	-
*06175	218814600		Divider, Styrofoam		Appelez-nous	-
*06176	218878500		Harness-wiring,control/divider				$ 105.99
*06177	5303299664		Spacer-shelf				$ 24.10
*06178	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*06179	5308016567		Nut-anchor		Appelez-nous	-
*06180	5303001260		Screw				$ 6.73
*06181	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray,lh   (Replaces: 5304404462)				$ 60.96
42B	218971302		Hanger-pan/tray,rh   (Replaces: 5304404463)				$ 73.71

    View Diagram in Separate Window       Print Part List
