SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System

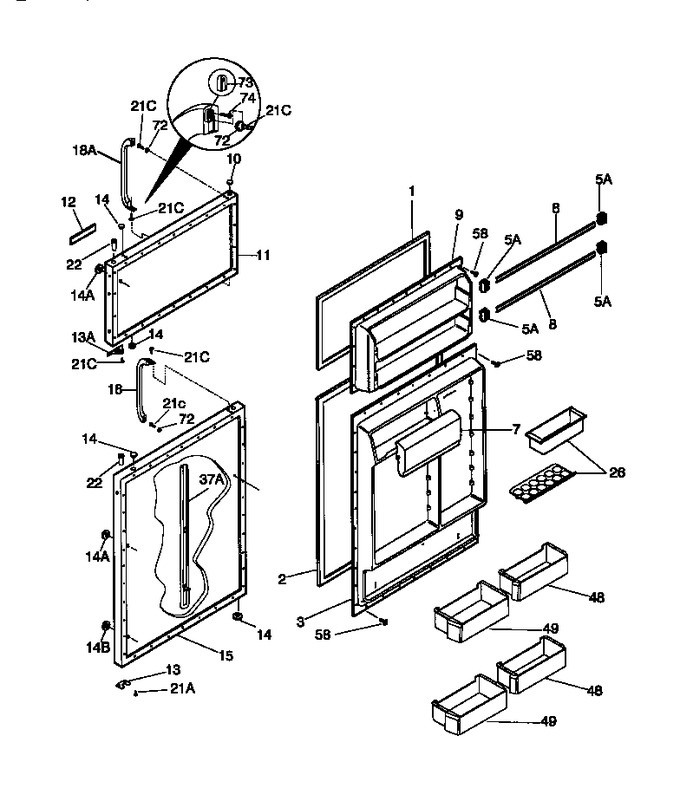

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
7	215058108		Door-dairy, 12.96`` Wide		Appelez-nous	-
8	218027051		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917582		Panel-frzr Door, White, Rh, W/insulation		Appelez-nous	-
12	218409401		Frame-nameplate, White		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917586		Panel-refr Door, White, Rh, W/insul & Brace		Appelez-nous	-
18	218397504		Handle-door, White, W/block & Screw				$ 135.71
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
48	218286003		Bin-door				$ 230.16
49	5303310709		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
*66040	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220329		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12B	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr Section				$ 82.06
14A	240494001		Plug-button, White, Refr Door Front   (Replaces: 218110901)			Immediately	$ 18.20
14B	218074001		Plug-button, White, Refr Door Front				$ 13.76
18A	218397501		Handle-door,white ,w/block & Screw				$ 112.04
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21C	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
26A	215817806		Tray-egg Accessory - Not Original Equipment				$ 13.46
37A	218397701		Trim-handle, 28.33``, White, With Mtg Locks		Appelez-nous	-
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37C	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
5A	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58

    View Diagram in Separate Window       Print Part List
