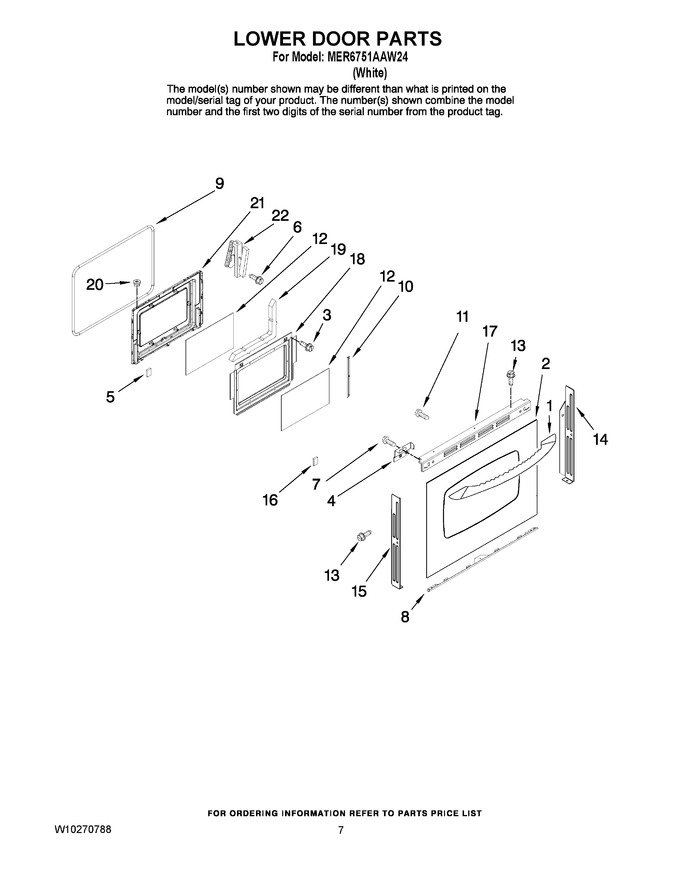

05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74011768 | Handle, Door (Replaces: 7701P517-60) |
|
Immediately | $ 194.06 | ||||
| 2 | 7902P757-60 | Kit, Door Glass (incl. Foil Tape) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 4 | 3801F832-45 | Bracket, Handle (left) |
|
$ 19.12 | |||||
| 4 | 3801F831-45 | Bracket, Handle (right) |
|
$ 19.17 | |||||
| 5 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 6 | 7101P208-60 | Screw (10abx1/4p) |
|
$ 11.92 | |||||
| 7 | WP74006515 | Screw, Handle (Replaces: 7101P681-60) |
|
$ 7.29 | |||||
| 8 | WP3807F708-71 | Support, Glass (Replaces: 3807F708-71) |
|
$ 144.83 | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 | ||||
| 10 | 3804F219-45 | Retainer, Glass |
|
- | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 12 | 7902P472-60 | Glass, Inner (2) |
|
- | |||||
| 13 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 14 | 3608F118-71 | Trim, Door (rt) |
|
$ 7.00 | |||||
| 15 | 3608F119-71 | Trim, Door (lt) |
|
$ 8.47 | |||||
| 16 | W10250536 | Tape |
|
- | |||||
| 17 | 3608F141-71 | Trim, Door Top |
|
$ 98.12 | |||||
| 18 | 3601F353-45 | Baffle, Door |
|
$ 128.19 | |||||
| 19 | 7002P221-60 | Insulation, Door |
|
- | |||||
| 20 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 21 | 2402W271-19 | Lining, Door |
|
$ 140.85 | |||||
| 22 | 74011142 | Hinge, Door (2) (Replaces: 7106P141-60) |
|
Immediately | $ 108.22 |
