01 - Cooktop Parts

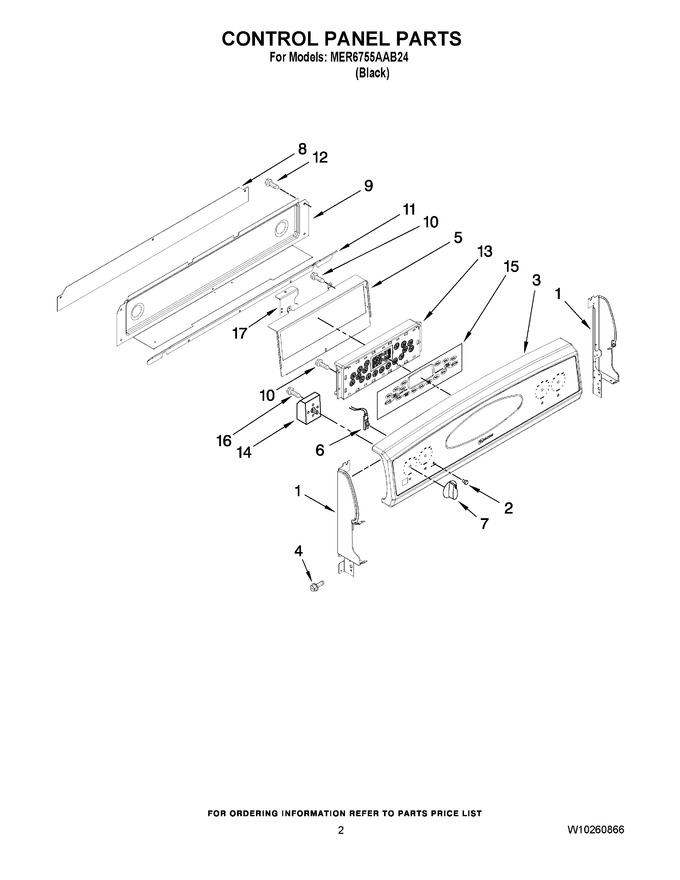

02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F733-70 | Support, Backguard (black Right) |
|
$ 27.86 | |||||
| 1 | 3807F734-70 | Support, Backguard (black Left) |
|
$ 18.35 | |||||
| 2 | WP7730P011-60 | Lens, Indicator (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 3 | 2602D353-09 | Panel, Control (black) |
|
- | |||||
| 4 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 5 | 3801F844-51 | Bracket, Control |
|
$ 34.28 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 7 | 7737P232-60 | Knob (black) |
|
- | |||||
| 8 | 3604F387-51 | Shield, Sight |
|
$ 5.02 | |||||
| 9 | 4005F803-51 | Cover, Rear Wire |
|
$ 19.75 | |||||
| 10 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 11 | 3604F405-51 | Shield, Wire |
|
$ 11.78 | |||||
| 12 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 13 | W10769079 | Control, H3 (elec) (Replaces: W10166967) |
|
$ 436.73 | |||||
| 14 | WP7403P239-60 | Switch, Infinite (lf, Rf) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 14 | WP7403P238-60 | Switch, Infinite (lr/rr) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 15 | 7728P500-60 | Overlay (black) |
|
$ 31.34 | |||||
| 16 | 7101P280-60 | Screw |
|
- | |||||
| 17 | 3801F930-51 | Bracket, Vent Ext. |
|
- |
