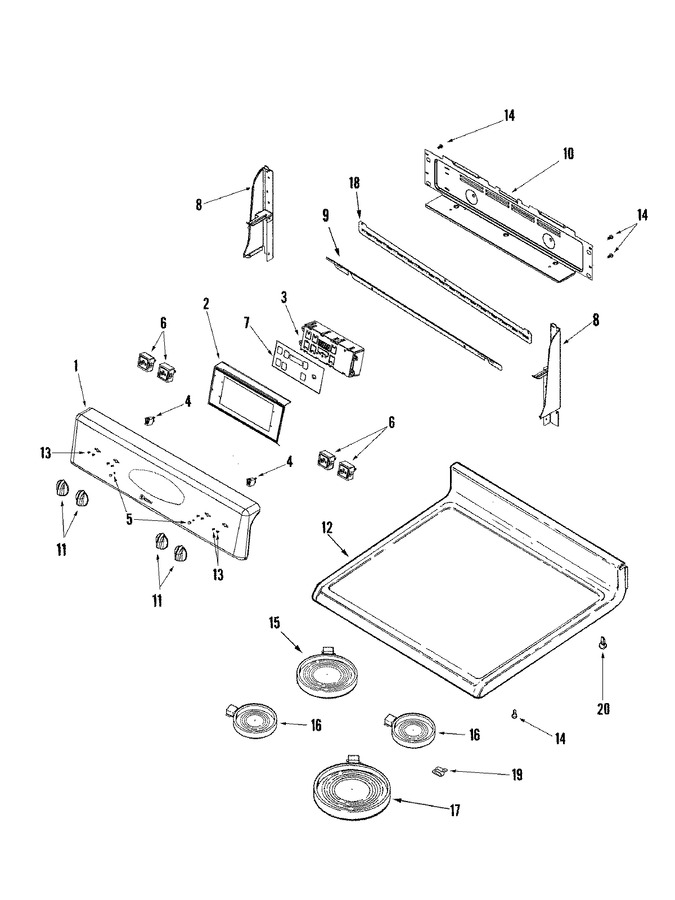

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010013 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | W10769079 | Control, H3 (elec) (Replaces: 74009992) | 10 |
|
$ 436.73 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | 74009995 | Overlay. H3 Control (bsq-elec) | 10 |
|
$ 45.20 | ||||
| 8 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 8 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 8 | 74009671 | Support, Backguard (bsq-rt) | 10 |
|
- | ||||
| 8 | 74009668 | Support, Backguard (bsq-lt) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 10 | 74010804 | Cover, Backguard Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74008946 | Knob (bsq/chr) | 10 |
|
$ 17.30 | ||||
| 12 | 74010026 | Top, Main (bsq) | 10 |
|
- | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | W10823715 | Element (2500w) (Replaces: 74009743) | 10 |
|
$ 315.14 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 17 | 74009082 | Element (12``) | 10 |
|
$ 199.46 | ||||
| 18 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 18 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 19 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 20 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 |
