SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Cooktop Burner


04 - Broiler & Oven Burner


05 - Door & Drawer


06 - Oven Chassis


07 - Rear Chassis, Lit/optional

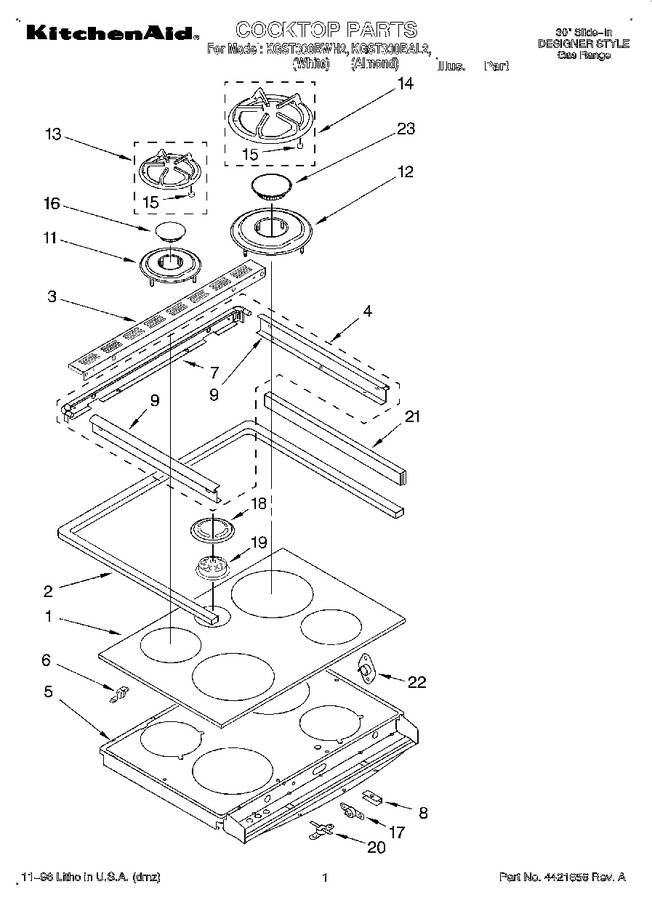

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751034		Cooktop, Ceran (white)		Appelez-nous	-
1	9751340		Cooktop, Ceran (almond)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop   (Replaces: 9780939)			Immediately	$ 60.83
3	9752090PT		Vent, Rear (almond)		Appelez-nous	-
3	9752090PW		Vent, Rear (white)		Appelez-nous	-
3	9752090PB		Vent, Rear (black)		Appelez-nous	-
4	4421431		Frame, Cooktop (almond)		Appelez-nous	-
4	9752003		Frame, Cooktop (washer (2))		Appelez-nous	-
4	4421430		Frame, Cooktop (white)		Appelez-nous	-
5	9751274		Support, Element		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
6	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
7	9752045PW		Trim, Rear (includes End Caps) (white)		Appelez-nous	-
7	9752045PT		Trim, Rear (includes End Caps) (almond)		Appelez-nous	-
8	4211831		Screw, (4) 10 X 3/4		Appelez-nous	-
8	9750821		Support Clips (4)		Appelez-nous	-
9	9751440PW		Trim, Side (white)		Appelez-nous	-
9	9751440PT		Trim, Side (almond)		Appelez-nous	-
11	3185816		Bezel, Small Lr-rf (almond Mdl.)		Appelez-nous	-
11	4166262		Bezel, Small Lr-rf (nut, Zinc No.8-32)		Appelez-nous	-
11	3185817		Bezel, Small Lr-rf (white Mdl.)		Appelez-nous	-
12	3185819		Bezel, Large Rr-lf (almond Mdl.)		Appelez-nous	-
12	3185820		Bezel, Large Rr-lf (white Mdl.)		Appelez-nous	-
12	4166262		Bezel, Large Rr-lf (nut, Zinc No.8-32)		Appelez-nous	-
13	3189860		Grates, Small (white Mdl.)		Appelez-nous	-
13	3189827		Grates, Small (almond Mdl.)		Appelez-nous	-
14	3189861		Grates, Large (white Mdl.)		Appelez-nous	-
14	3189826		Grates, Large (almond Mdl.)		Appelez-nous	-
15	814323		Pad, Grate (5)   (Replaces: 3186678)			Immediately	$ 10.28
16	3189856		Cap, Small (2) (white Mdl.)		Appelez-nous	-
16	3189820		Cap, Small (2) (almond Mdl.)		Appelez-nous	-
17	9780265		Screw (2)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
18	4421506		Cap, Vent (almond Mdl.)		Appelez-nous	-
18	4421505		Cap, Vent (white Mdl.)		Appelez-nous	-
19	9751366		Cap, Vent		Appelez-nous	-
20	WP9759944		Bimetal   (Replaces: 9751984)			Immediately	$ 121.57
21	9752034		Gasket, Seal (2)		Appelez-nous	-
22	9752006		Bimetal				$ 130.03
23	3189821		Cap, Large (2) (almond Mdl.)		Appelez-nous	-
23	3189857		Cap, Large (2) (white Mdl.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
