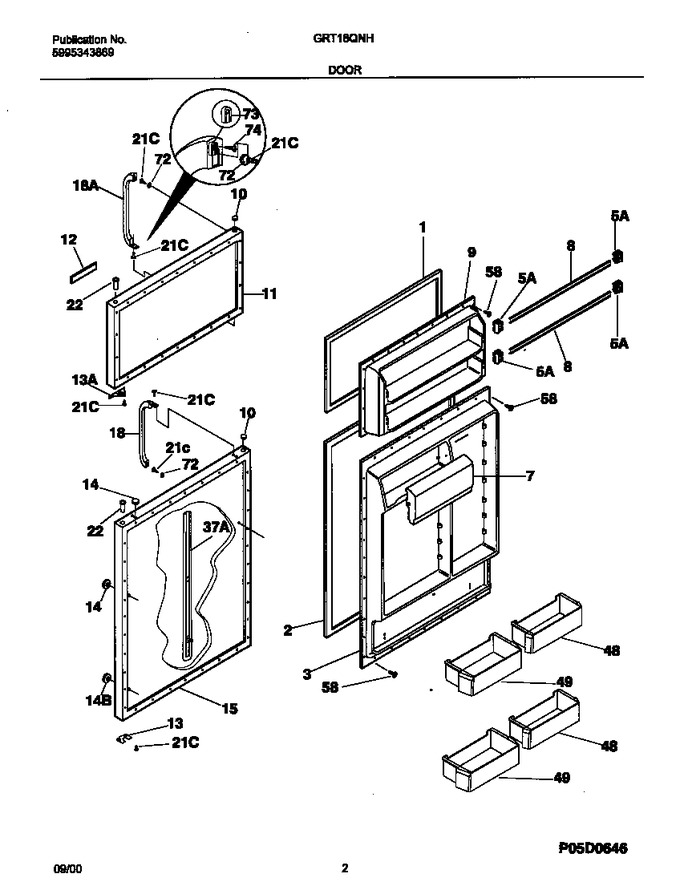

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic   (Replaces: 218730605)			Immediately	$ 188.19
3	218360701		Panel-inner Door, Refr		Appelez-nous	-
5	215473602		Support-door Rack,rh/lh			Immediately	$ 11.58
7	215058105		Door-dairy,13`` Wide		Appelez-nous	-
8	218027051		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917795		Panel-frzr Door, White, With Insulation		Appelez-nous	-
12	218531605		Nameplate Assy, White		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	218074001		Plug-button,white ,refr Door Front ,1 ,lower				$ 13.76
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917797		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218397501		Handle-door,white ,w/block & Screw				$ 112.04
18	218397504		Handle-door, White, W/block & Screw				$ 135.71
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218397701		Trim-handle, 28.33``, White, With Mtg Locks		Appelez-nous	-
48	218286003		Bin-door				$ 230.16
49	5303310709		Bin-door, Gallon		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
*41001	218467401		Frame-nameplate, White		Appelez-nous	-
*41003	218468023		Label-nameplate,white		Appelez-nous	-
*41004	218468100		Magnet-nameplate		Appelez-nous	-
*41005	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218906701		Lock-handle Trim,stick-on				$ 67.86
