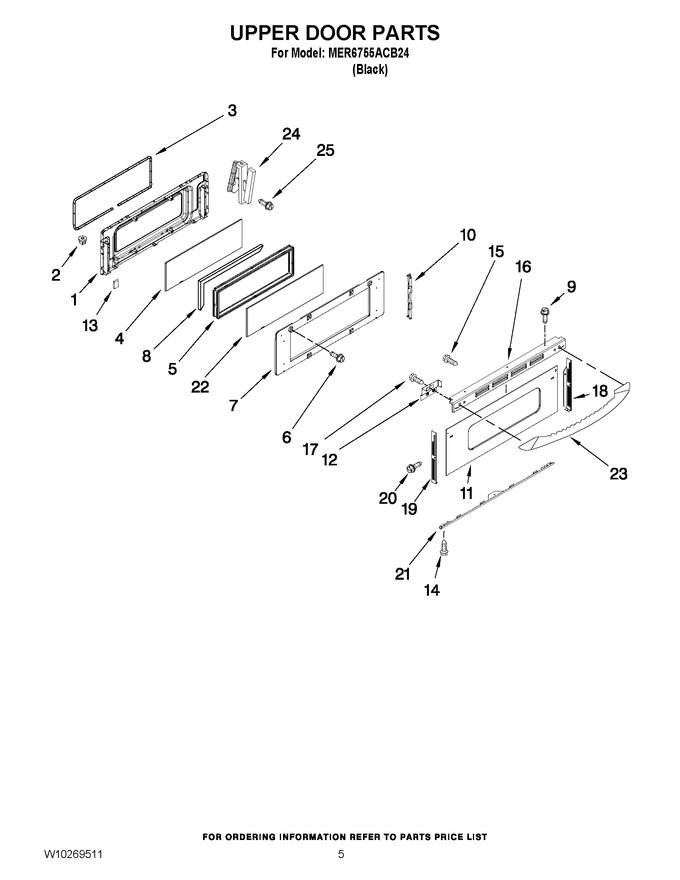

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W248-19		Lining, Door		Appelez-nous	-
2	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
3	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
4	7902P521-60		Glass, Inner (2)		Appelez-nous	-
5	7907P034-60		Frame, Glass		Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
7	3601F354-45		Baffle, Door				$ 66.15
8	7002P488-60		Insulation, Door		Appelez-nous	-
9	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
10	3804F179-45		Retainer, Glass		Appelez-nous	-
11	7902P799-60		Kit, Door Glass (incl. Foil Tape)		Appelez-nous	-
12	3801F832-45		Bracket, Handle (left)				$ 19.12
12	3801F831-45		Bracket, Handle (right)				$ 19.17
13	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
14	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
15	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
16	3608F141-70		Trim, Door Top				$ 96.37
17	WP74006515		Screw, Handle (2)   (Replaces: 7101P681-60)				$ 7.29
18	3608F118-70		Trim, Door (rt)				$ 47.51
19	3608F119-70		Trim, Door (lt)				$ 31.88
20	WP98008545		Screw, Trim   (Replaces: 7101P633-60)				$ 15.94
21	3807F708-70		Support, Glass				$ 63.97
22	7902P520-60		Glass, Door		Appelez-nous	-
23	WP74011767		Handle, Door   (Replaces: 7701P516-60)				$ 225.61
24	7106P148-60		Hinge, Door (2)		Appelez-nous	-
25	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
