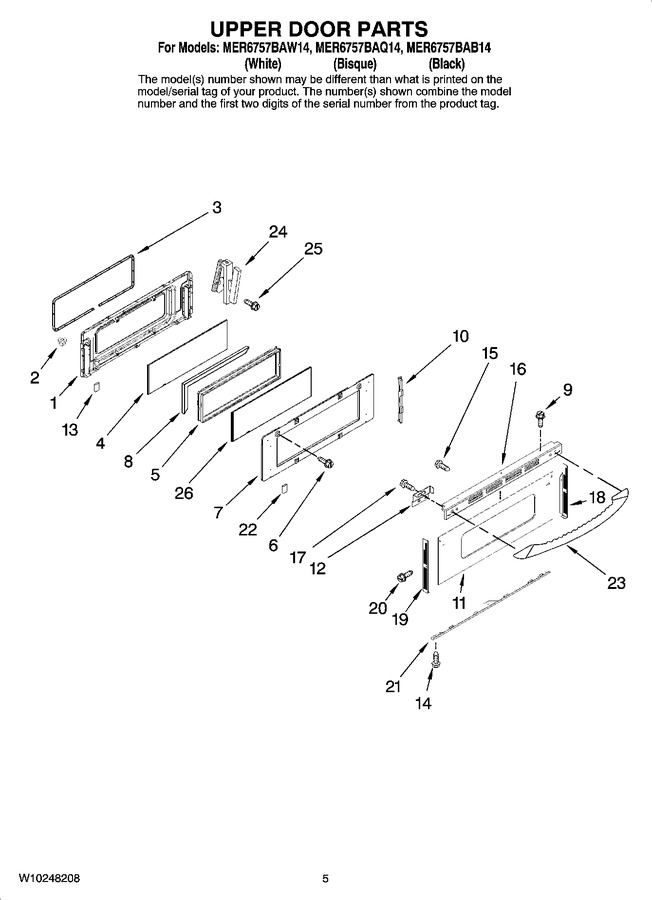

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Rack And Element Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004564		Lining, Door		Appelez-nous	-
2	WP74001574		Nut, Snap (black)   (Replaces: 74001574)			Immediately	$ 9.91
2	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 9.89
3	WP7201P091-60		Gasket, Door   (Replaces: 74004565)				$ 137.97
4	74004566		Glass, Inner (2)				$ 83.85
5	74004567		Frame, Glass		Appelez-nous	-
6	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
7	74009976		Baffel, Door		Appelez-nous	-
8	74004569		Insulation, Door		Appelez-nous	-
9	WP98008545		Screw (black)   (Replaces: 74009537)				$ 15.94
9	WP98008544		Screw (white)   (Replaces: 74009540)				$ 11.89
10	74004592		Retainer, Glass		Appelez-nous	-
11	12002456		Kit, Door Glass (incl. Foil Tape) (bisque)		Appelez-nous	-
11	12002455		Kit, Door Glass (incl. Foil Tape) (white)		Appelez-nous	-
11	12002454		Kit, Door Glass (incl. Foil Tape) (black)		Appelez-nous	-
12	3801F832-45		Bracket, Handle (left)   (Replaces: 74009699)				$ 19.12
12	3801F831-45		Bracket, Handle (right)   (Replaces: 74009698)				$ 19.17
13	WP74005546		Spacer, Rubber   (Replaces: 74005546)				$ 9.48
14	WP74006515		Screw W/washer   (Replaces: 74006777)				$ 7.29
15	W11233072		Screw   (Replaces: 74002979)			Immediately	$ 12.62
16	W10165726		Trim, Door Top (white)		Appelez-nous	-
16	W10165729		Trim, Door Top (black)		Appelez-nous	-
16	3608F141-78		Trim, Door Top (bisque)		Appelez-nous	-
17	WP74006515		Screw, Handle (2)   (Replaces: 74006635)				$ 7.29
18	74009745		Trim, Door (rt) (black)		Appelez-nous	-
18	74009747		Trim, Door (rt) (white)		Appelez-nous	-
18	74009749		Trim, Door (rt) (bisque)		Appelez-nous	-
19	74009746		Trim, Door (lt) (black)		Appelez-nous	-
19	74009750		Trim, Door (lt) (bisque)		Appelez-nous	-
19	74009748		Trim, Door (lt) (white)		Appelez-nous	-
20	WP74009541		Screw, Trim (bisque)   (Replaces: 74009541)				$ 6.26
20	WP98008544		Screw, Trim (white)   (Replaces: 74009540)				$ 11.89
20	WP98008545		Screw, Trim (black)   (Replaces: 74009537)				$ 15.94
21	WP3807F708-71		Support, Glass (white)   (Replaces: 74009687)				$ 144.83
21	74009686		Support, Glass (black)		Appelez-nous	-
21	74009688		Support, Glass (bisque)		Appelez-nous	-
22	WP74004224		Tape   (Replaces: 74004224)				$ 10.53
23	WP74011767		Handle, Door (black)   (Replaces: 74011767)				$ 225.61
23	WP74011768		Handle, Door (white)   (Replaces: 74011768)			Immediately	$ 194.06
23	WP74011778		Handle, Door (bisque)   (Replaces: 74011778)				$ 226.31
24	W10202401		Hinge, Door (2)				$ 51.19
25	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29
26	74004571		Glass, Door				$ 31.93
