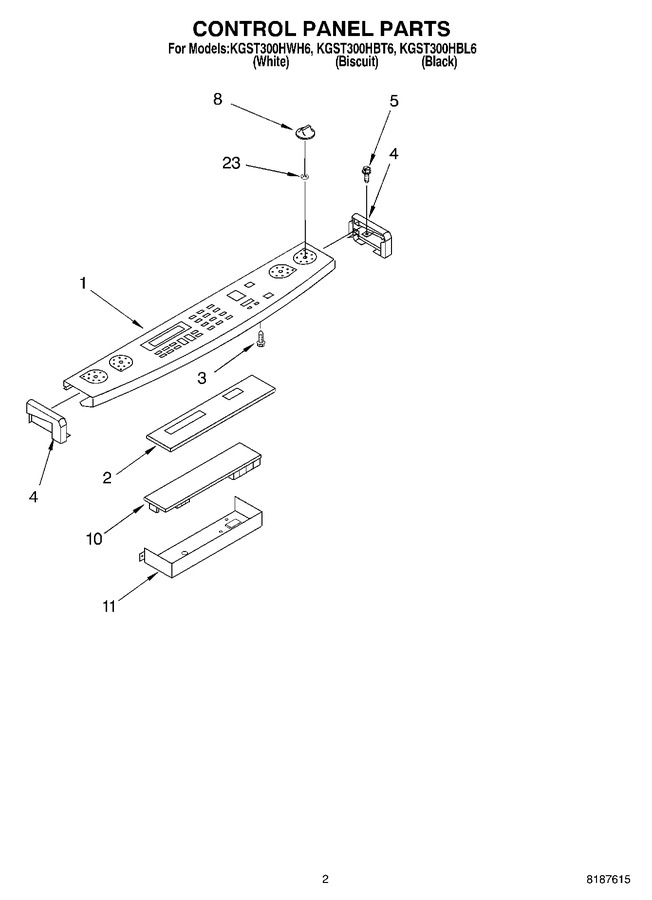

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754350CC		Console, Glass (biscuit Model)		Appelez-nous	-
1	9754350CB		Console, Glass (black)		Appelez-nous	-
1	9754350CW		Console, Glass (white Model)		Appelez-nous	-
2	9754374		Microcptr		Appelez-nous	-
3	9780271		Screw, 8-18 X 1/4``		Appelez-nous	-
4	9751039FW		(end Cap Left Hand) (white)		Appelez-nous	-
4	9751039FB		(end Cap Left Hand) (black)		Appelez-nous	-
4	9751040FB		End Cap Right Hand (black)		Appelez-nous	-
4	9751040FT		End Cap (right Hand) (almond)		Appelez-nous	-
4	9751040FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9751039FT		(end Cap Left Hand) (almond)		Appelez-nous	-
5	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	W10405147		Knobs, Control (black)   (Replaces: 9751199FF)				$ 87.20
8	9751199FW		Knobs, Control (white Mdl.)				$ 19.89
8	9751199FT		Knobs, Control (almond Mdl.)		Appelez-nous	-
10	9754381		Microcptr		Appelez-nous	-
11	9755021		Shield, Control Panel		Appelez-nous	-
23	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
