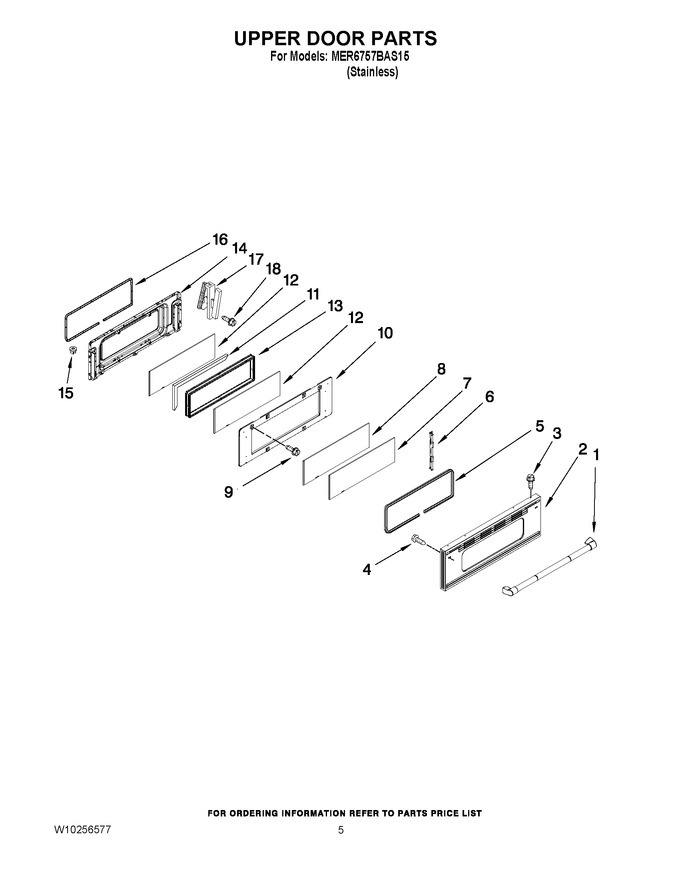

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P526-60		Handle, Door				$ 129.23
2	7760P150-60		Panel, Door		Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
4	7101P675-60		Screw		Appelez-nous	-
5	7201P138-60		Gasket, Window		Appelez-nous	-
6	3804F184-45		Retainer, Glass Support (2)		Appelez-nous	-
7	7902P751-60		Glass, Outer Door				$ 68.00
8	7902P542-60		Glass, Inner Door		Appelez-nous	-
9	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
10	3601F354-45		Baffle, Door				$ 66.15
11	7002P488-60		Insulation (2)		Appelez-nous	-
12	7902P521-60		Glass, Inner (2)		Appelez-nous	-
13	7907P034-60		Frame, Glass		Appelez-nous	-
14	2402W248-19		Liner, Door		Appelez-nous	-
15	WP74001574		Nut, Snap (2)   (Replaces: 7103P141-60)			Immediately	$ 9.91
16	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
17	7106P148-60		Hinge, Door		Appelez-nous	-
18	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
