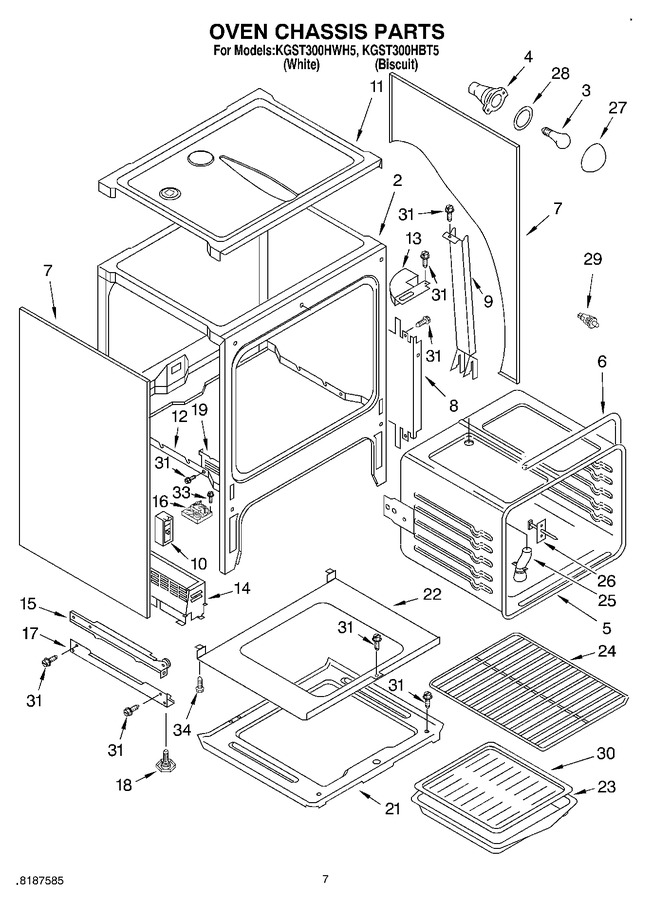

06 - Oven Chassis


07 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9750514GM		Chassis, Front		Appelez-nous	-
3	40A15		Bulb, Light   (Replaces: 8935)			Immediately	$ 1.98
4	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
5	9753340GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PC		Oven, Side L Or R (biscuit)		Appelez-nous	-
7	9781907PW		Oven, Side L Or R (white)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Duct, Side Fan		Appelez-nous	-
10	WP8053421		Spark Module   (Replaces: 8053421)			Immediately	$ 166.02
11	9752637		Burner Box		Appelez-nous	-
12	9752735		Retainer, Insulation		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750224		Rail, Drawer (right)		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Receiver, Hinge		Appelez-nous	-
21	9782051		Shield, Drawer		Appelez-nous	-
22	9782050		Plate, Reflector		Appelez-nous	-
23	4396923		Pan, Broiler   (Replaces: 420101GM)			Immediately	$ 52.04
24	9750498		Rack, Standard (2)		Appelez-nous	-
25	9751592		Vent Tube		Appelez-nous	-
26	9782081		Sensor, Oven				$ 119.40
27	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
28	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
29	9781581		Door Switch				$ 65.60
30	4396923		Grill, Broiler   (Replaces: 420104GM)			Immediately	$ 52.04
31	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
33	9751808		Screw, 8-18 X 1		Appelez-nous	-
34	9754301		Insulation, Flue		Appelez-nous	-
34	9751871		Screw, 10-16 X 1		Appelez-nous	-
