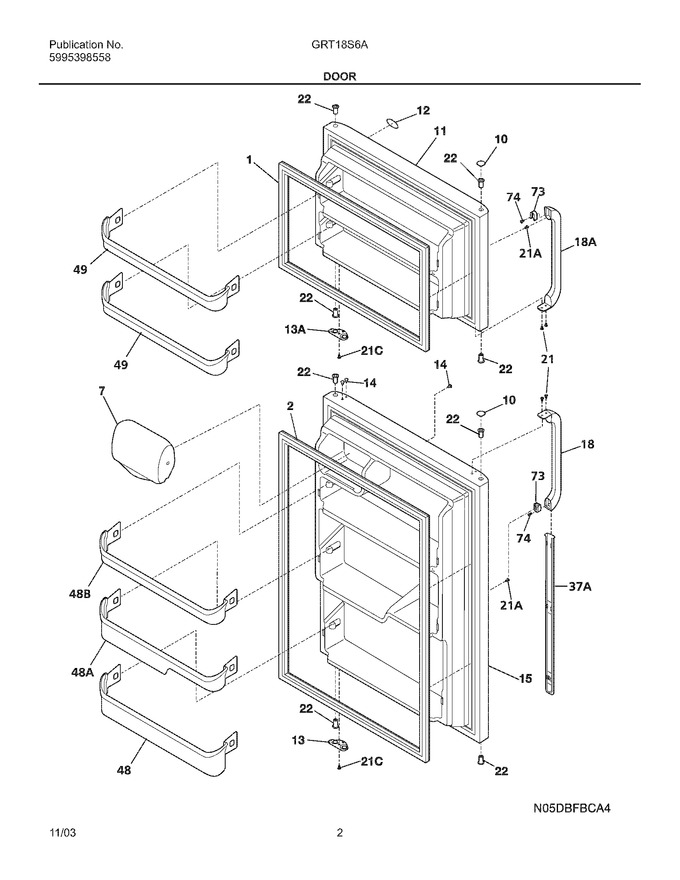

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door,dairy ,clear ,w/graphics (Replaces: 240337707) |
|
Immediately | $ 36.41 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240476209 | Panel-frzr Door,white ,complete Assy |
|
- | |||||
| 12 | 240422301 | Label-nameplate,white |
|
$ 4.87 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 18.20 | ||||
| 15 | 240476309 | Panel-refr Door,white ,complete Assy |
|
- | |||||
| 18 | 218397504 | Handle-door,white ,refr ,w/block & Screw |
|
$ 135.71 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 43.29 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 19.13 | |||||
| 18A | 218397501 | Handle-door,white ,w/block & Screw |
|
$ 112.04 | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 (Replaces: 240521301) |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 218074001 | Plug-button,white ,refr Door Front ,1 ,lower |
|
$ 13.76 | |||||
| 37A | 240433601 | Trim-handle,26.84`` ,white ,lower |
|
- | |||||
| 37A | 218906701 | Lock-handle Trim,stick-on |
|
$ 67.86 | |||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 | ||||
| F1 | 241872503 | Gasket,frzr Door Seal ,white ,magnetic (Replaces: 240514605) |
|
Immediately | $ 137.66 | ||||
| F2 | 242193213 | Gasket,seal ,white ,refr Door ,magnetic (Replaces: 240514608) |
|
Immediately | $ 190.22 |
