SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

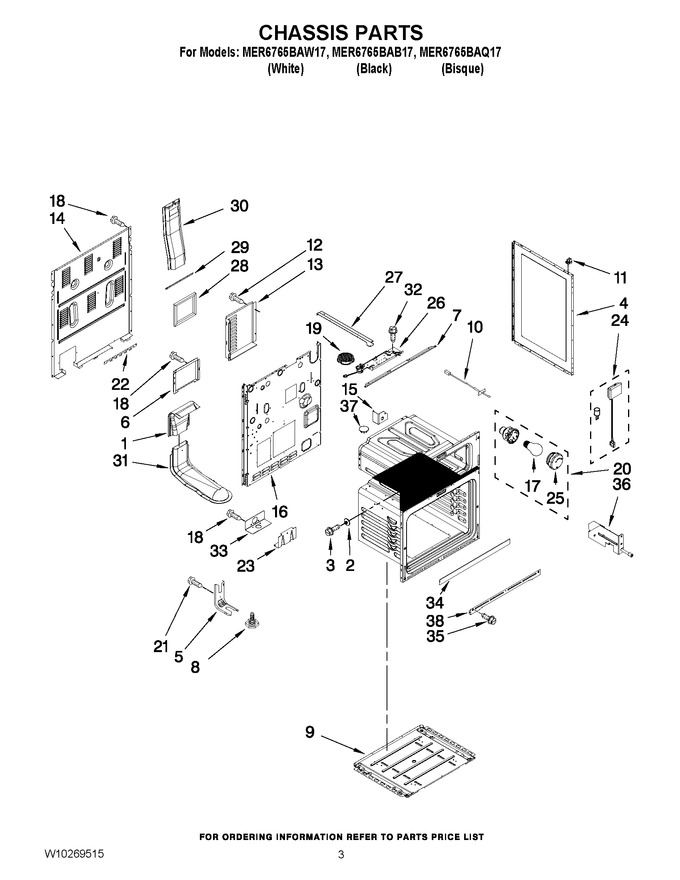

03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Rack And Element Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P082-60		Extension, Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	7101P618-60		Screw, Shoulder		Appelez-nous	-
4	2618F194-71		Panel, Side (white) (2)		Appelez-nous	-
4	2618F194-78		Panel, Side (bisque) (2)		Appelez-nous	-
4	2618F194-70		Panel, Side (black) (2)				$ 65.57
5	WP3801F656-51		Brack, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
6	4005F747-51		Cover, Access		Appelez-nous	-
7	3801F924-80		Bracket, Cooktop		Appelez-nous	-
8	W11665456		Foot, Leveler (4)   (Replaces: 7101P507-60)			Immediately	$ 25.30
9	W10312768		Base, Gemini   (Replaces: 4003F070-51)		Appelez-nous	-
10	WP7430P044-60		Sensor, Oven (upper Oven)   (Replaces: 7430P044-60)			Immediately	$ 158.35
10	12001656		Sensor, Oven (lower Oven)   (Replaces: 7430P042-60)			Immediately	$ 39.55
11	8010P087-60		Spacer, Top (left)		Appelez-nous	-
11	8010P088-60		Spacer, Top (right)		Appelez-nous	-
12	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
13	4005F592-51		Cover, Bottom Wire		Appelez-nous	-
14	W10167412		Cover, Upper Wire				$ 94.91
15	3801F706-51		Bracket (left)				$ 7.68
15	3801F705-51		Bracket (right)				$ 8.51
16	4002F332-51		Back, Main				$ 29.67
17	W11122008		Bulb, Oven   (Replaces: 7403P114-60)				$ 143.28
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
19	8034P008-60		Screen, Smoke				$ 25.43
20	WP74011278		Oven Light Assy   (Replaces: 7407P168-60)				$ 101.56
21	WP7101P485-60		Screw   (Replaces: 7101P485-60)				$ 26.33
22	8036P012-60		Sheild, Cord				$ 31.23
23	3807F580-51		Support, Lwr Oven		Appelez-nous	-
24	7407P179-60		Light Assy. (upper)		Appelez-nous	-
25	WP9781049		Lens, Bulb   (Replaces: 209429)			Immediately	$ 71.93
26	74007429		Latch, Door Lock   (Replaces: 8002P077-60)				$ 319.39
27	4011F525-51		Bottom, Burner Box (left)		Appelez-nous	-
27	4011F524-51		Bottom, Burner Box (right)		Appelez-nous	-
28	7201P089-60		Gasket, Vent		Appelez-nous	-
29	3604F335-51		Sheild, Door Lock		Appelez-nous	-
30	4022W017-45		Vent, Oven				$ 31.43
31	4006W129-45		Vent, Box (lower)		Appelez-nous	-
31	4006W139-45		Vent, Box (upper)		Appelez-nous	-
32	74003975		Screw   (Replaces: 7101P375-60)				$ 12.02
33	W10190166		Bracket, Pwr Sply				$ 8.32
34	7212P066-60		Seal, Frame		Appelez-nous	-
35	WP98008545		Screw (2)   (Replaces: 7101P633-60)				$ 15.94
36	WP7450P108-60		Switch, Assy   (Replaces: 7450P108-60)			Immediately	$ 138.24
37	7718P030-60		Plug, Hole		Appelez-nous	-
38	3608F091-70		Trim, Kickplate				$ 54.45
NI	7002P490-60		Insulation, Wrap (upper Oven)		Appelez-nous	-
NI	7002P233-60		Insulation, Wrap (lower Oven)		Appelez-nous	-
NI	7002P434-60		Insulation, Wrap (upper Oven)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
