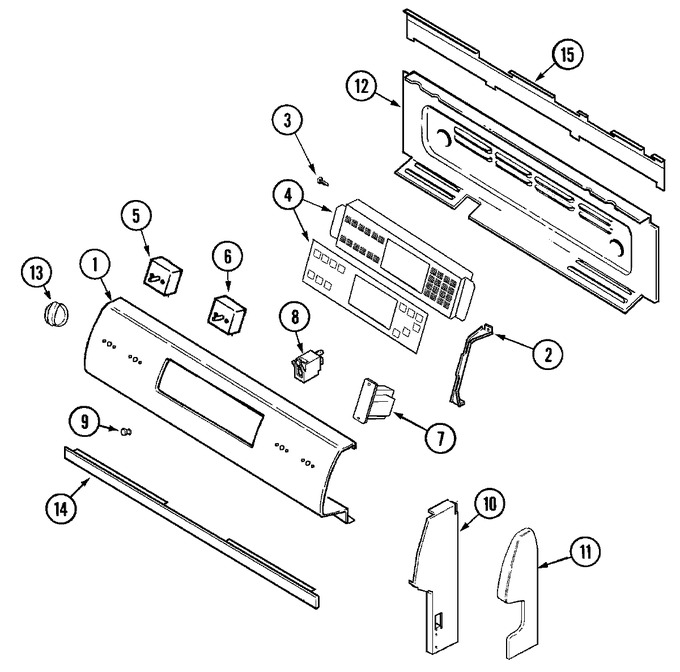

02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Top Assembly
07 - Wiring Information
08 - Wiring Information (at Series 19)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006558 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | 74004541 | Bracket, Clock | 10 |
|
- | ||||
| 2 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 3 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 4 | 74006214 | Clock W/overlay (bsq) | 10 |
|
- | ||||
| 4 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 5 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 7 | 74006520 | Transformer, Step Down(15/amp) | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 9 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 10 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 10 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 11 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 11 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 11 | 74005237 | Cap, End (lt-bsq) | 10 |
|
- | ||||
| 11 | 74005236 | Cap, End (rt-bsq) | 10 |
|
- | ||||
| 12 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74005143 | Knob, Switch (bsq) | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 15 | 74006376 | Extension, Control Panel | 11 |
|
- | ||||
| 16 | WP74003482 | Relay, Auxillary (Replaces: 74003482) | 19 |
|
$ 153.21 | ||||
| 16 | 74009385 | Harness, Main | 19 |
|
- | ||||
| 16 | 74007644 | Harness, Door Lock Motor | 17 |
|
- | ||||
| 16 | 74007369 | Lock, Purse | 10 |
|
- | ||||
| 16 | 74006553 | Harness, Control Pnl/top | 10 |
|
- | ||||
| 16 | 74006552 | Harness, Oven/light | 10 |
|
- | ||||
| 16 | 74006551 | Harness, Main | 10 |
|
- | ||||
| 16 | 74004687 | Harness, Relay | 19 |
|
- | ||||
| 16 | 74006488 | Harness, Element | 10 |
|
- | ||||
| 16 | 74004537 | Harness, Door Logic Switch | 10 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note Purse Lock Removed | 15 |
|
- | ||||
| 16 | 74005489 | Harness, Door Lock Motor | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 19 |
|
Immediately | $ 12.62 | |||
| 17 | 74005918 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 71002782 | Guide, Cooking | 10 |
|
- | ||||
| 17 | 16009690 | Cookbook (gemini) | 10 |
|
- | ||||
| 18 | 74004581 | Manual, Service (mini) | 10 |
|
- | ||||
| 18 | 16026020 | Tech Sht, Range, Elect | 10 |
|
- |
