01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Top Assembly
07 - Wiring Information
08 - Wiring Information (at Series 19)
SELECT A DIAGRAM
New Model Search:

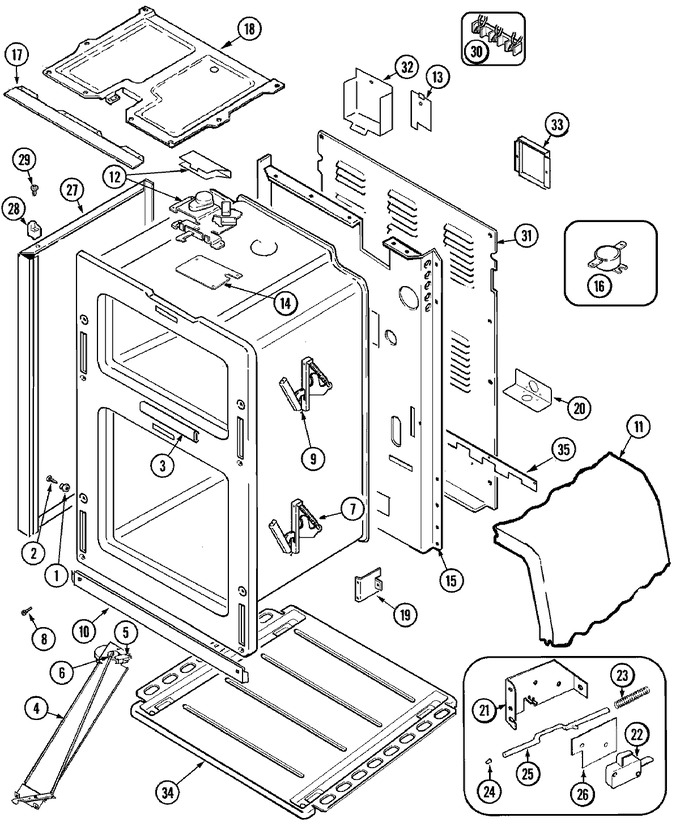

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 1 | 74007427 | Spacer, Side Panel (long) | 17 |
|
$ 8.95 | ||||
| 2 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 3 | 74004518 | Seal, Frame (front) | 10 |
|
- | ||||
| 4 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 4 | 74005485 | Door Lock Latch Assy (lwr) | 10 |
|
- | ||||
| 5 | 74005532 | Switch, Lock | 10 |
|
- | ||||
| 6 | 74005531 | Motor, Lock | 10 |
|
- | ||||
| 7 | WP74011141 | Hinge, Door (Replaces: 74003968) | 10 |
|
Immediately | $ 128.06 | |||
| 8 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 9 | 74004523 | Hinge, Oven Door (upr) | 10 |
|
- | ||||
| 9 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 10 | 74004525 | Trim, Kickplate (wht) | 10 |
|
- | ||||
| 10 | 74007479 | Trim, Kickplate (wht) | 16 |
|
- | ||||
| 10 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 11 | 74004520 | Insulation, Oven Front (upr) | 10 |
|
- | ||||
| 11 | 74004526 | Insulation, Wrap | 10 |
|
- | ||||
| 12 | 74007429 | Lock, Door Latch Asy. | 17 |
|
$ 319.39 | ||||
| 12 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 12 | 74005495 | Door Lock Latch Assy (upr) | 10 |
|
$ 143.67 | ||||
| 12 | 74007642 | Shield, Door Lock Wire | 17 |
|
- | ||||
| 13 | 74005484 | Bracket, Door Lock | 10 |
|
- | ||||
| 14 | 74005496 | Retainer, Insul. Door Lock | 10 |
|
- | ||||
| 14 | W10124350 | Not Required Part Or See Note | 17 |
|
- | ||||
| 15 | 74006550 | Back, Main | 10 |
|
- | ||||
| 15 | 74002334 | Shield, Wire | 10 |
|
- | ||||
| 16 | WP74004530 | Switch, Limit (Replaces: 74004530) | 10 |
|
$ 174.53 | ||||
| 17 | 74003384 | Bracket, Main Top | 10 |
|
- | ||||
| 18 | 74007367 | Box, Burner (rt) | 17 |
|
- | ||||
| 18 | 74005505 | Bottom, Burner Box | 10 |
|
- | ||||
| 18 | 74007366 | Box, Burner (lt) | 17 |
|
- | ||||
| 19 | 74005500 | Support, Oven (lwr) | 10 |
|
- | ||||
| 19 | 74005499 | Support, Oven (rear) | 10 |
|
- | ||||
| 20 | W10190166 | Bracket, Power Supply (Replaces: 74004180) | 10 |
|
$ 8.32 | ||||
| 21 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 21 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 22 | 74004536 | Switch | 10 |
|
$ 115.26 | ||||
| 22 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 23 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 24 | 74001631 | Bumper, Rod | 10 |
|
$ 5.22 | ||||
| 25 | 74003562 | Rod, Door Light Switch | 10 |
|
- | ||||
| 26 | 74001872 | Insulator, Switch | 10 |
|
- | ||||
| 27 | 74003236 | Panel, Side (wht) | 10 |
|
- | ||||
| 27 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 28 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 28 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 29 | 7101P313-60 | Screw (8abx3/8-zn) | 10 |
|
- | ||||
| 30 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 30 | 74004532 | Insulator, Heat Shield | 10 |
|
- | ||||
| 31 | 74004576 | Cover, Main Wire | 10 |
|
- | ||||
| 32 | 74004577 | Cover, Terminal | 10 |
|
- | ||||
| 33 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 34 | 74007449 | Plate, Base | 16 |
|
- | ||||
| 34 | 74004828 | Base, Plate | 10 |
|
- | ||||
| 35 | 74005653 | Shield, Power Cord | 10 |
|
- |
