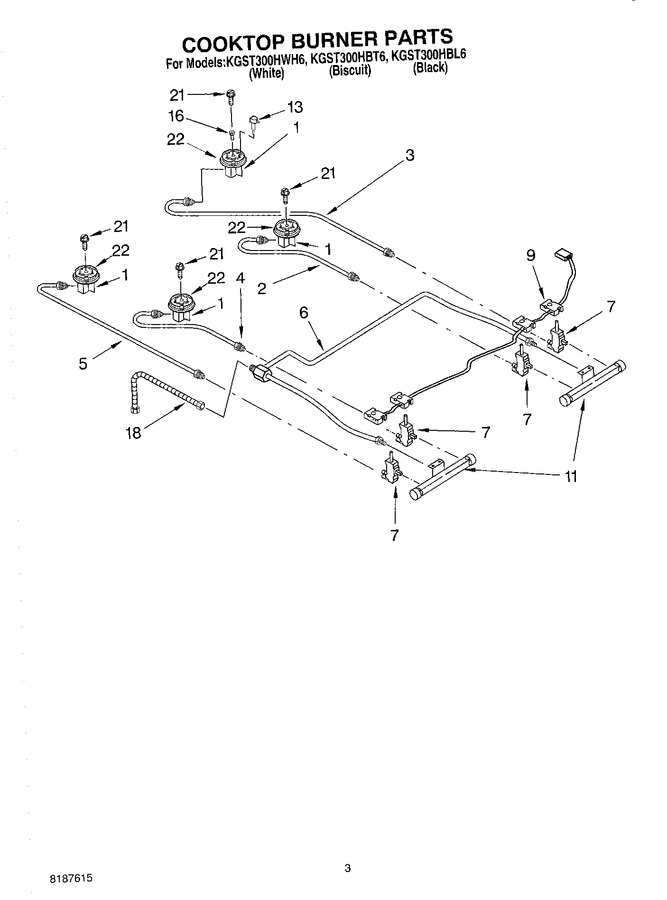

03 - Cooktop Burner


04 - Broiler & Oven Burner


05 - Door And Drawer


06 - Oven Chassis


07 - Rear Chassis, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754183		Burner Base, W/orifice (small 6k - Rf-lr)		Appelez-nous	-
1	9754189		Burner Base, W/orifice (medium 12k - Rr)		Appelez-nous	-
1	9754192		Burner Base, W/orifice (large 14k - Lf)		Appelez-nous	-
2	9753610		Tubing, Burner (rf)		Appelez-nous	-
3	9753611		Tubing, Burner (rr)		Appelez-nous	-
4	9753608		Tubing, Burner (lf)		Appelez-nous	-
5	9753609		Tubing, Burner (lr)		Appelez-nous	-
6	9754148		Tubing, Manifold		Appelez-nous	-
7	3185829		Valve, Burner (bolt, Valve (4))		Appelez-nous	-
7	9753044		Valve, Burner (12k - Black Stem)		Appelez-nous	-
7	9753045		Valve, Burner (6k - Red Stem)				$ 120.98
7	9753614		Valve, Burner (14k - Plain Stem)				$ 122.08
9	9752994		Spark Switch & Harness Assembly				$ 91.19
11	9754116L		Manifold (left Hand)		Appelez-nous	-
11	9754116R		Manifold (right Hand)		Appelez-nous	-
13	WP8523793		Electrode   (Replaces: 8273061)			Immediately	$ 36.15
16	WP9753930		Orifice, Burner (14k Large Base)   (Replaces: 9753930)				$ 80.19
16	WP9753929		Orifice, Burner (12k Medium Base)   (Replaces: 9753929)				$ 72.63
16	3192528		Orifice, Burner (6k Small Base)		Appelez-nous	-
18	9751854		Tubing, Flex		Appelez-nous	-
21	WPW10067840		Screw, 8-18 X .650   (Replaces: 8281147)				$ 6.98
22	4455849		Head, Burner (14k Lf)				$ 47.68
22	8273216		Head, Burner (6k - Rf-lr)		Appelez-nous	-
22	WP4455981		Head, Burner (12k - Rr)   (Replaces: 8273214)			Immediately	$ 78.77
