SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:

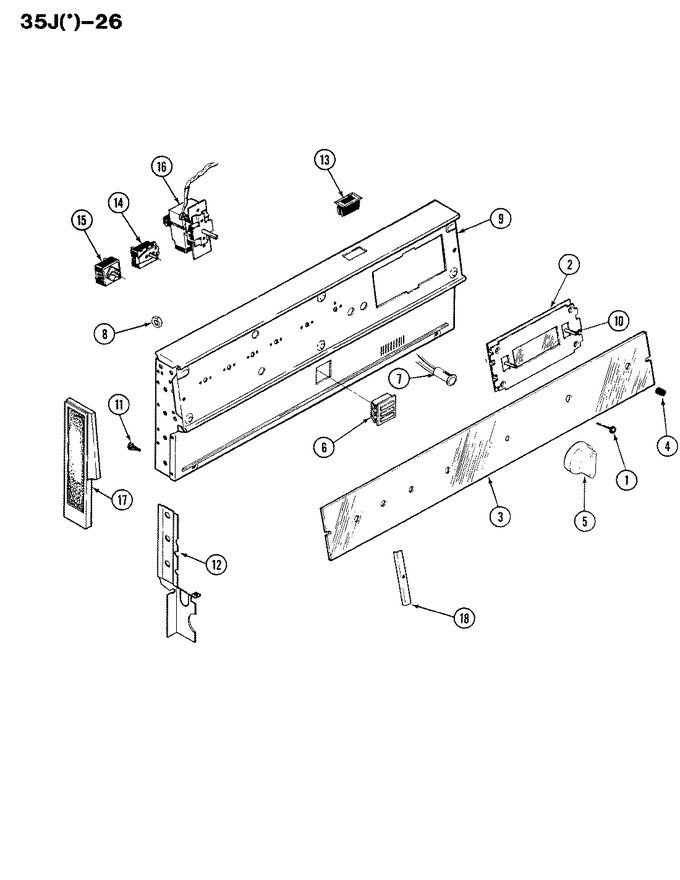

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P422-60 | Knob, Clock | 01 |
|
- | ||||
| 2 | 7602P097-60 | Clock | 01 |
|
- | ||||
| 3 | 7910P098-60 | Glass, Backguard | 01 |
|
- | ||||
| 4 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 5 | 7737P023-60 | Knob | 01 |
|
- | ||||
| 5 | 7739P027-60 | Knob, Therm | 01 |
|
- | ||||
| 6 | 7407P068-60 | Light, Signal | 01 |
|
- | ||||
| 7 | 7407P029-60 | Light, Signal | 01 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P053-60) | 01 |
|
$ 4.29 | ||||
| 9 | 2601W265-84 | Backguard Assy, Almond | 01 |
|
- | ||||
| 9 | 4005F284-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 10 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 01 |
|
$ 0.81 | ||||
| 11 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 12 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 12 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 12 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 13 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 14 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 14 | 7403P198-60 | Switch, Selector | 01 |
|
- | ||||
| 15 | 7403P268-60 | Switch, Infinite (1400w) | 01 |
|
- | ||||
| 15 | 7403P269-60 | Switch, Infinite (2600w) | 01 |
|
- | ||||
| 15 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 15 | 7403P183-60 | Switch, Inf. 250v | 01 |
|
- | ||||
| 16 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 16 | 7404P030-60 | Thermostat | 01 |
|
- | ||||
| 17 | 7726P032-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 17 | 7726P031-60 | Trim, Bkgd End (lt) | 01 |
|
- | ||||
| 18 | 7720P088-60 | Trim, Glass Ret | 01 |
|
- |
