SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door (lower)


04 - Door (upper)


05 - Oven


06 - Supplemental Information


07 - Wiring Information

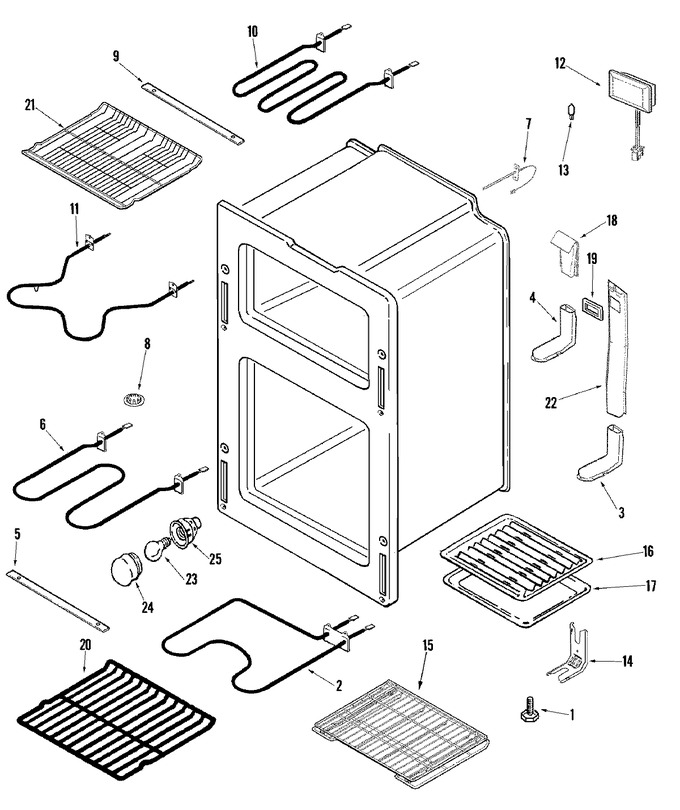

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
2	WP7406P428-60		Element, Bake (lower)   (Replaces: 74004107)	10		Immediately	$ 47.32
2	74007932		Insulator, Terminal	10			$ 5.83
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74003394		Vent Box Assembly	10	Appelez-nous	-
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	74004522		Box, Vent Assy (upr)	10	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	74008597		Screen, Smoke Eliminator	10	Appelez-nous	-
5	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
5	74003386		Support, Broil Element	10	Appelez-nous	-
6	WPW10310249		Element, Broil (4 Pass)   (Replaces: 74003041)	10		Immediately	$ 112.33
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	12001656		Sensor, Oven (long)   (Replaces: 74003095)	10		Immediately	$ 39.55
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
8	74004517		Plug, Hole	10	Appelez-nous	-
9	3807F176-19		Support, Broil Element	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W10201551		Element, Broil (upper)   (Replaces: 74004106)	10		Immediately	$ 47.97
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74004105		Element, Bake (upper)	10		Immediately	$ 100.74
12	74009970		Halogen Lamp Assy.	10			$ 47.69
13	WP74009925		Bulb, Halogen (bi-pin Low)   (Replaces: 74009925)	10		Immediately	$ 20.37
14	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
14	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
15	74005218		Rack, Telescoping Assy	10	Appelez-nous	-
16	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
16	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	13	Appelez-nous	-
17	Y3401F02019		Pan, Broil	10	Appelez-nous	-
17	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	13	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74009988		Bracket, Vent Extension	10	Appelez-nous	-
18	74009987		Extension, Vent (elect)	10	Appelez-nous	-
19	74004533		Gasket, Vent Box (upr)	10	Appelez-nous	-
20	WPW10282492		Rack, Oven   (Replaces: 74001757)	10			$ 65.15
21	WPW10273816		Rack, Oven (upr)   (Replaces: 74004578)	10			$ 144.76
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
22	74004535		Extension, Oven Vent Assembly	10	Appelez-nous	-
23	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	10		Immediately	$ 16.80
24	WP9781049		Lens, Bulb   (Replaces: 71001867)	10		Immediately	$ 71.93
25	WP74011278		Oven Light Assy.   (Replaces: 71002427)	10			$ 101.56

    View Diagram in Separate Window       Print Part List
