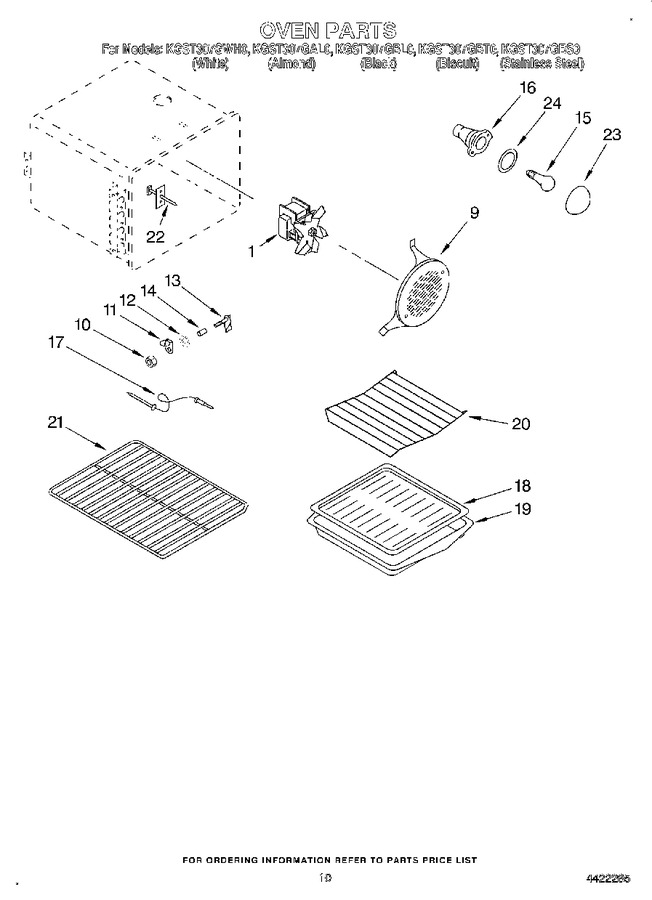

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780272		Screw, No.10 X 1/2		Appelez-nous	-
1	9781543		Assembly, Fan				$ 142.09
9	9751904GM		Baffle, Convection		Appelez-nous	-
9	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
10	4167277		Lock-nut, Cvr.jack		Appelez-nous	-
11	4167266		Jack Cover		Appelez-nous	-
12	305289		Gasket		Appelez-nous	-
13	4173575		Receptacle, Probe		Appelez-nous	-
14	3179672		Spacer - Tubing		Appelez-nous	-
15	40A15		Bulb, Light   (Replaces: 8935)			Immediately	$ 1.98
16	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
17	3150144		Probe, Meat				$ 106.70
18	4396923		Grill, Broiler   (Replaces: 420104GM)			Immediately	$ 52.04
19	4396923		Pan, Broiler   (Replaces: 420101GM)			Immediately	$ 52.04
20	9750827		Rack, Roasting		Appelez-nous	-
21	9750823		Rack, Standard (3)		Appelez-nous	-
22	3148440		Sensor		Appelez-nous	-
22	9781509		Screw, 8-32 X 3/8		Appelez-nous	-
23	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
24	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
