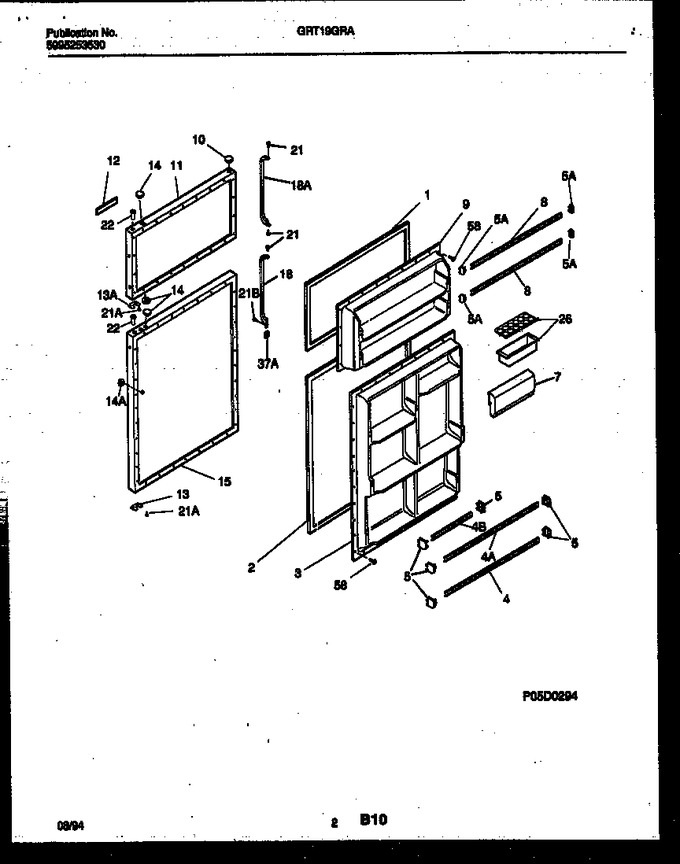

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, White, Magnetic |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366092 | Rack-door, 26.02`` X 1.62`` |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215058104 | Door-dairy |
|
- | |||||
| 8 | 215366090 | Rack-door, 25.00`` X 1.62`` |
|
- | |||||
| 9 | 215466501 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917350 | Panel - Frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215731801 | Nameplate Assy, White W/mtg Tape |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917348 | Panel-refr Door, White, W/ Insul & Brace |
|
- | |||||
| 18 | 215800903 | Handle-door, 17.37``, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White, |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *80425 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14A | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 15A | 215894100 | Cross Brace-door (non-illustrated) |
|
- | |||||
| 18A | 215800901 | Handle-door, 17.02``, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 37A | 215480205 | Trim-handle, End Cap, White, Refr Door |
|
- | |||||
| 4A | 215366091 | Rack-door, 25.44`` X 1.62`` |
|
- | |||||
| 4B | 215366093 | Rack-door, 12.21`` X 1.62`` |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 |
