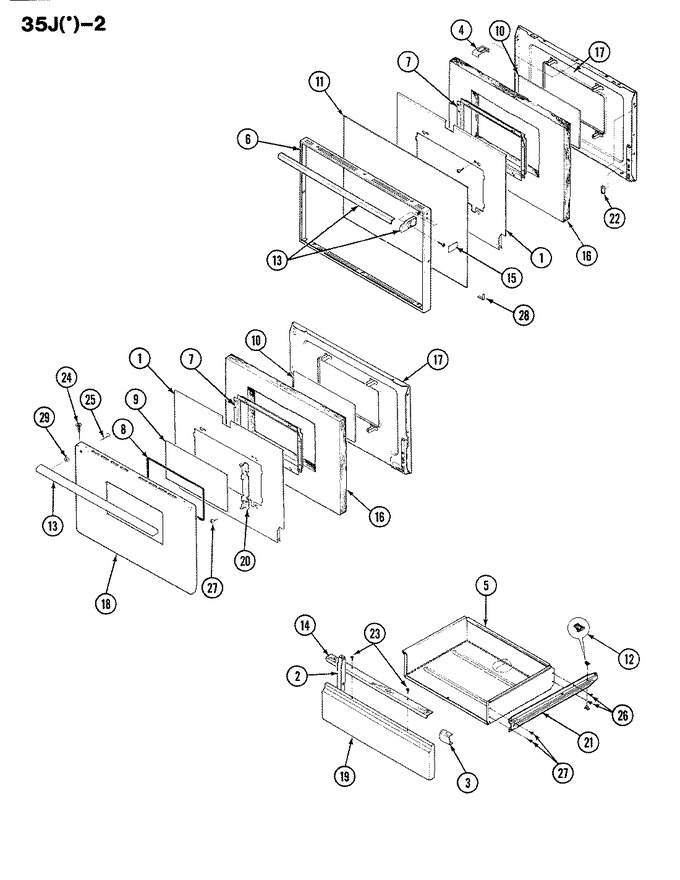

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 01 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 3802F044-51 | Brace, Drawer | 01 |
|
- | ||||
| 3 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 3801F031-51 | Bracket | 01 |
|
- | ||||
| 4 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 5 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 01 |
|
Immediately | $ 6.85 | |||
| 6 | 7706P243-60 | Frame, Door | 01 |
|
- | ||||
| 7 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 9 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 10 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 11 | 7902P274-60 | Glass, Door | 01 |
|
- | ||||
| 12 | 8016P009-60 | Glide, Drawer | 12 |
|
- | ||||
| 12 | 8016P004-60 | Glide, Drawer | 12 |
|
- | ||||
| 12 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 13 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 14 | 2411F001-74 | Handle Door Alm | 01 |
|
- | ||||
| 15 | 7728P068-60 | Insert, Handle (chrome) | 01 |
|
- | ||||
| 16 | 7002P012-60 | Insulation, Door | 01 |
|
- | ||||
| 17 | 2402W091-23 | Lining Assy, Ov Dr | 01 |
|
- | ||||
| 17 | 2402W154-19 | Lining, Oven Door | 21 |
|
- | ||||
| 18 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 19 | 2416F006-74 | Panel, Service Drawer Almond | 01 |
|
- | ||||
| 20 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 21 | 3406F020-80 | Runner, Inner | 01 |
|
- | ||||
| 21 | 3406F026-80 | Runner, Inner | 10 |
|
- | ||||
| 22 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 23 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 24 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 25 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 27 | 7101P225-60 | Screw, Svc Door | 01 |
|
- | ||||
| 28 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 29 | W10124350 | Not Required Part Or See Note | 01 |
|
- |
