01 - Body

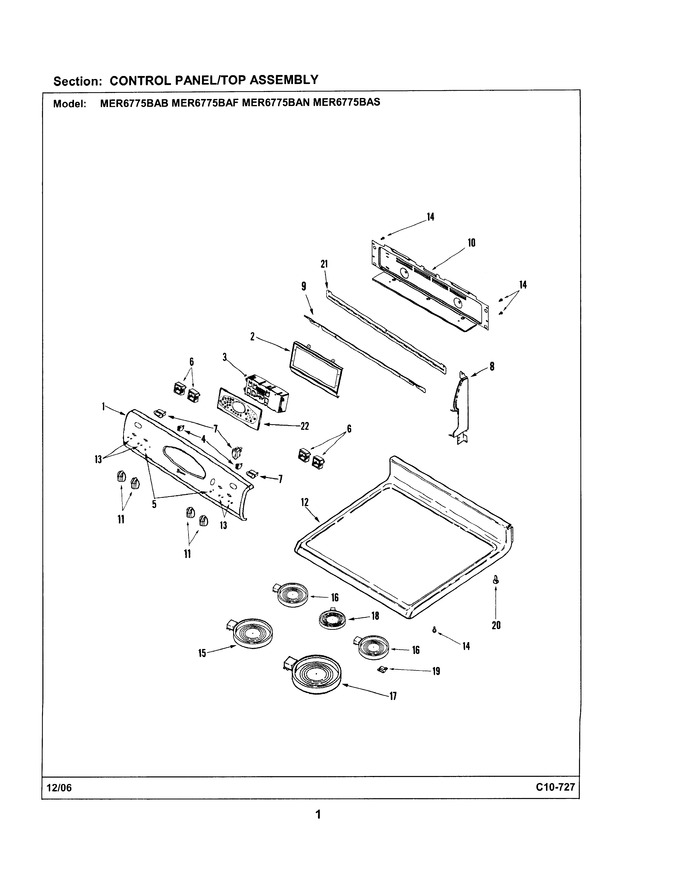

02 - Control Panel/top Assembly
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2602D346-88 | Panel, Backguard (bsq) | 10 |
|
- | ||||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | W10769079 | Control, H3 (elec) (Replaces: 74009992) | 10 |
|
$ 436.73 | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP74008940 | Switch, Infinite (flex) (Replaces: 74008940) | 10 |
|
Immediately | $ 125.54 | |||
| 6 | WP74010824 | Switch, Element (lrg) (Replaces: 74010824) | 10 |
|
Immediately | $ 100.92 | |||
| 6 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 73.53 | |||
| 7 | 74010225 | Switch, Rocker W/shield (bsq) | 10 |
|
- | ||||
| 8 | 74010712 | Support, Backguard (lt-bsq) | 10 |
|
- | ||||
| 8 | 74010714 | Support, Backguard (rt-bsq) | 10 |
|
- | ||||
| 8 | WP74009541 | Screw (bsq) (Replaces: 74009541) | 10 |
|
$ 6.26 | ||||
| 8 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 9 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74010804 | Cover, Backguard Wire | 10 |
|
- | ||||
| 11 | 74008946 | Knob (bsq/chr) | 10 |
|
$ 17.30 | ||||
| 12 | 5706X616-88 | Top Assembly (bsq) | 10 |
|
- | ||||
| 13 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74009898 | Element, Dual (2400w) | 10 |
|
$ 157.27 | ||||
| 16 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 17 | W10823719 | Element, Triple (Replaces: 74011844) | 10 |
|
Immediately | $ 254.24 | |||
| 18 | WP7406P497-60 | Element, Warm (240v) (Replaces: 7406P497-60) | 12 |
|
Immediately | $ 132.93 | |||
| 18 | WP74009899 | Element, Warm (250v) (Replaces: 74009899) | 10 |
|
$ 153.85 | ||||
| 19 | 74003072 | Support, Ceramic Element | 10 |
|
- | ||||
| 20 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 21 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 22 | 7728P495-60 | Overlay (bsq) | 10 |
|
- |
