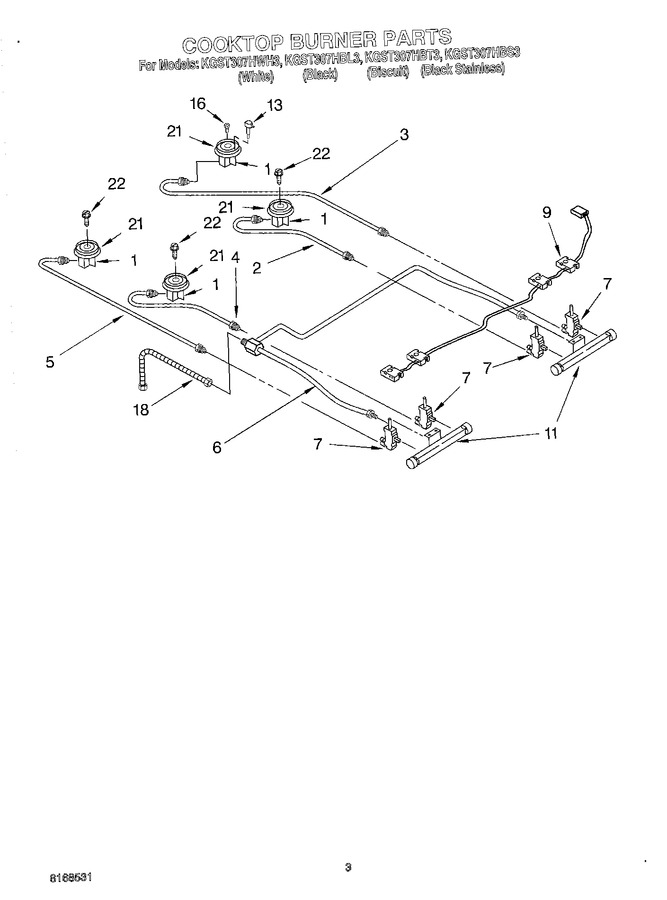

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9754183		Burner Base W/orifice (6k Rf-lr)		Appelez-nous	-
1	9754189		Burner Base W/orifice (12k Rr)		Appelez-nous	-
1	9754192		Burner Base W/orifice (14k Lf)		Appelez-nous	-
2	9753610		Tubing, Burner (rf)		Appelez-nous	-
3	9753611		Tubing, Burner (rr)		Appelez-nous	-
4	9753608		Tubing, Burner (lf)		Appelez-nous	-
5	9753609		Tubing, Burner (lr)		Appelez-nous	-
6	9752996		Tubing, Manifold		Appelez-nous	-
7	9753045		Valve, Burner (6k - Red Stem)				$ 120.98
7	3185829		Valve, Burner (bolt, Gas Valve)		Appelez-nous	-
7	9753614		Valve, Burner (14k - Plain Stem)				$ 122.08
7	9753044		Valve, Burner (12k - Black Stem)		Appelez-nous	-
9	9752994		Spark Switch & Harness Assembly				$ 91.19
11	9753613		Manifold		Appelez-nous	-
13	WP8523793		Electrode   (Replaces: 8273061)			Immediately	$ 36.15
16	WP9753930		Orifice, Burner (14k Large Base)   (Replaces: 9753930)				$ 80.19
16	9753928		Orifice, Burner (6k Small Base)				$ 38.86
16	WP9753929		Orifice, Burner (12k Medium Base)   (Replaces: 9753929)				$ 72.63
18	9751854		Tubing, Flex		Appelez-nous	-
21	8273216		Head, Burner (6k - Rf-lr)		Appelez-nous	-
21	WP4455981		Head, Burner (12k - Rr)   (Replaces: 8273214)			Immediately	$ 78.77
21	9754181		Head, Burner (14k - Lf)		Appelez-nous	-
22	WPW10067840		Screw, 8-18 X .650   (Replaces: 8281147)				$ 6.98
