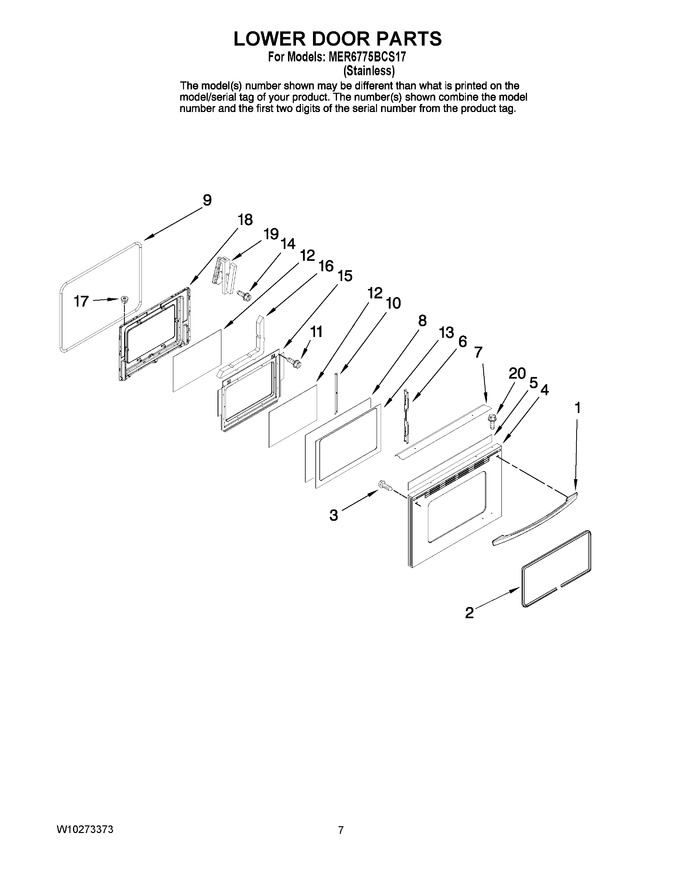

05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7701P526-60 | Handle, Door |
|
$ 129.23 | |||||
| 2 | WP74009029 | Gasket, Window (Replaces: 7201P141-60) |
|
Immediately | $ 145.22 | ||||
| 3 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 4 | 7760P154-60 | Panel, Door |
|
- | |||||
| 5 | WP74010043 | Insulation, Foil (Replaces: 7002P427-60) |
|
$ 67.18 | |||||
| 6 | 3804F265-45 | Retainer, Glass Support (2) |
|
$ 9.40 | |||||
| 7 | 3604F441-51 | Shield, Door |
|
- | |||||
| 8 | 7902P468-60 | Glass, Door |
|
- | |||||
| 9 | WPW10162384 | Gasket, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 | ||||
| 10 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 11 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 12 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 162.53 | ||||
| 13 | 7760P154-60 | Glass, Door Outer |
|
- | |||||
| 14 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 15 | 3601F373-51 | Baffle, Door |
|
$ 244.22 | |||||
| 16 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 17 | WP74001574 | Nut, Snap (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 18 | 2402W312-19 | Lining, Door |
|
$ 144.50 | |||||
| 19 | 74011142 | Hinge, Door (2) (Replaces: 7106P141-60) |
|
Immediately | $ 108.22 | ||||
| 20 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 |
