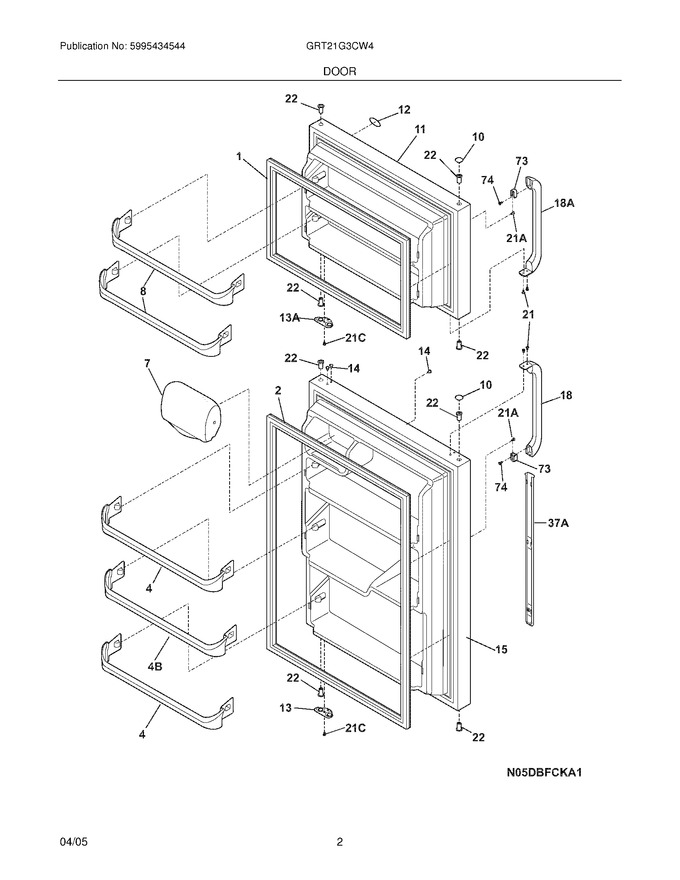

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240534901		Rack-door			Immediately	$ 47.03
7	240337706		Door-dairy,w/graphics ,white		Appelez-nous	-
8	240534801		Rack-door			Immediately	$ 49.62
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	240450303		Door-frzr,white		Appelez-nous	-
12	240422301		Label-nameplate,white				$ 4.87
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white			Immediately	$ 18.20
15	240450403		Door-refr,white ,complete Assy		Appelez-nous	-
18	218397504		Handle-door,white ,refr ,w/block & Screw				$ 135.71
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	240312414		Door Stop,white ,frzr   (Replaces: 240312404)				$ 19.13
14A	240494001		Plug-button,screw Type ,white   (Replaces: 240428301)			Immediately	$ 18.20
18A	218397501		Handle-door,white ,w/block & Screw				$ 112.04
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
37A	240433601		Trim-handle,26.84`` ,white ,lower		Appelez-nous	-
37A	218906701		Lock-handle Trim,stick-on				$ 67.86
37A	218074001		Plug-button,white ,refr Door Front ,1 ,lower				$ 13.76
4B	240534701		Rack-door,4b			Immediately	$ 28.80
F1	241872505		Gasket,seal ,white ,frzr Door ,magnetic   (Replaces: 240514607)				$ 179.22
F2	242193213		Gasket,seal ,white ,refr Door ,magnetic   (Replaces: 240514608)			Immediately	$ 190.22
