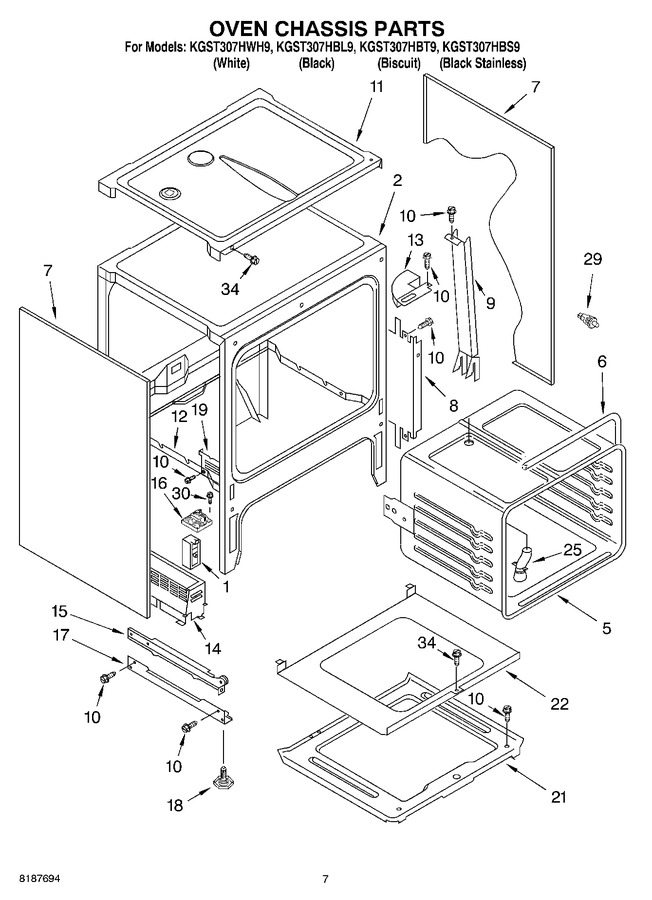

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10110491		Module, Spark   (Replaces: 8522426)			Immediately	$ 276.35
2	9750514GM		Chassis, Front		Appelez-nous	-
5	9753335GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PB		Oven, Side L Or R (black)		Appelez-nous	-
7	9781907PC		Oven, Side L Or R (biscuit)		Appelez-nous	-
7	9781907PW		Oven, Side L Or R (white)		Appelez-nous	-
8	9780265		Screw (2)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Fan Duct, Side		Appelez-nous	-
10	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
11	9752637		Burner Box		Appelez-nous	-
12	9752735		Retainer, Insulation		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Door L Or R		Appelez-nous	-
21	340184		Screw				$ 12.10
21	9782051		Shield, Drawer		Appelez-nous	-
22	9782050		Plate, Reflectance		Appelez-nous	-
25	9751592		Vent Tube		Appelez-nous	-
29	9755192		Door Switch				$ 113.77
30	9751808		Screw, 8-18 X 1		Appelez-nous	-
34	9751871		Screw, 10-16 X 1		Appelez-nous	-
