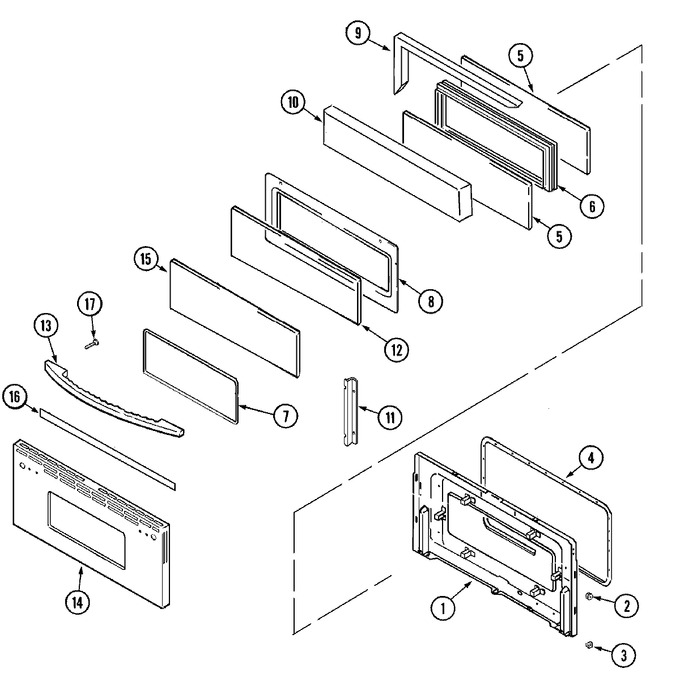

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004564		Lining, Oven Door	10	Appelez-nous	-
2	7103P053-60		Nut, Push-on End Cap	10	Appelez-nous	-
3	Y04100035		Nut, Push	10	Appelez-nous	-
4	WP7201P091-60		Gasket, Oven Door   (Replaces: 74004565)	10			$ 137.97
5	74004566		Glass, Door (inner)	10			$ 83.85
6	74004567		Frame, Glass	10	Appelez-nous	-
7	74004906		Gasket, Silicone	10	Appelez-nous	-
8	74004568		Baffle, Oven Door	10	Appelez-nous	-
9	74004569		Insulation, Door (8.5 X 21.5)	10	Appelez-nous	-
10	74004570		Insulation, Door (3 X 8.7)	10	Appelez-nous	-
10	74004952		Insulation, Foil	10			$ 31.28
11	74004896		Retainer, Glass Support	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74004691		Glass, Oven Door (inner)	10			$ 120.18
13	74003617		Handle, Door (blk)	10			$ 101.85
14	74004895		Door Assy (upr/chr)	10	Appelez-nous	-
15	74004899		Glass, Oven Door (blk)	10	Appelez-nous	-
16	7103P053-60		Nut, Push-on End Cap	10	Appelez-nous	-
16	74004900		Trim, Door Upper (blk)	10	Appelez-nous	-
16	Y04100035		Nut, Push	10	Appelez-nous	-
17	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
