01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door (upper)
05 - Oven
06 - Top Assembly
07 - Wiring Information
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

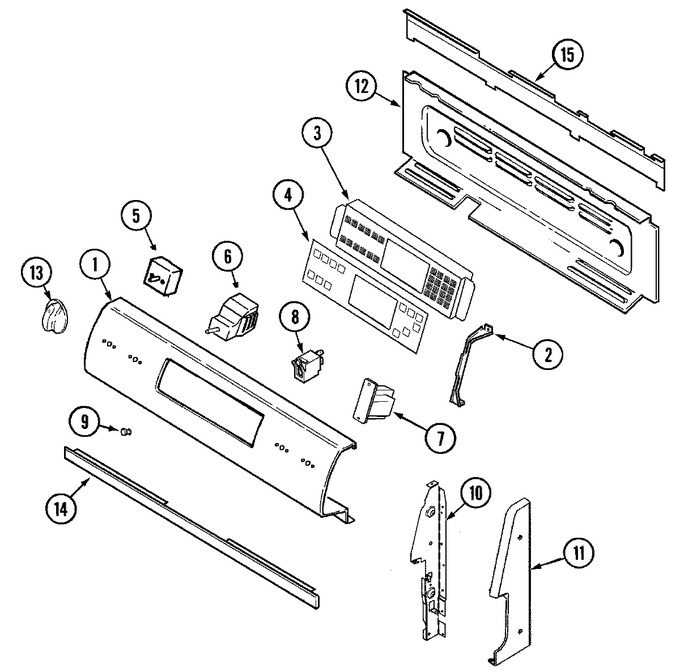

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005234 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 2 | 74005388 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74005471 | Clock, (convect) | 10 |
|
- | ||||
| 3 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 4 | 74005468 | Overlay, Clock (bsq) | 10 |
|
- | ||||
| 5 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 5 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 6 | 71003201 | Screw W/washer | 10 |
|
- | ||||
| 6 | 74002144 | Switch, Dual Element | 10 |
|
- | ||||
| 7 | 74005456 | Transformer, Stepdown (12v) | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 9 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 10 | 74005393 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 10 | 74005392 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 11 | 74005237 | Cap, End (lt-bsq) | 10 |
|
- | ||||
| 11 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 11 | WP74009541 | Screw (1/2``-bsq) (Replaces: 74004976) | 10 |
|
$ 6.26 | ||||
| 11 | 74005236 | Cap, End (rt-bsq) | 10 |
|
- | ||||
| 12 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74005143 | Knob, Switch (bsq) | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 15 | 74004551 | Extension, Control Panel | 10 |
|
- | ||||
| 15 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74006376 | Extension, Control Panel | 12 |
|
- | ||||
| 16 | 74005493 | Harness, Oven/light | 10 |
|
- | ||||
| 16 | 74005492 | Harness, Sensor Logic Lock | 10 |
|
- | ||||
| 16 | 74005491 | Harness, Main | 10 |
|
- | ||||
| 16 | 74004537 | Harness, Door Logic Switch | 10 |
|
- | ||||
| 16 | 74005489 | Harness, Door Lock Motor | 10 |
|
- | ||||
| 16 | 74005490 | Harness, Control Pnl/top | 10 |
|
- | ||||
| 16 | 74005494 | Harness, Top/elements | 10 |
|
- | ||||
| 17 | 74005366 | Manual, Use & Care (trilingual | 10 |
|
- | ||||
| 17 | 16009690 | Cookbook (gemini) | 10 |
|
- | ||||
| 17 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- |
