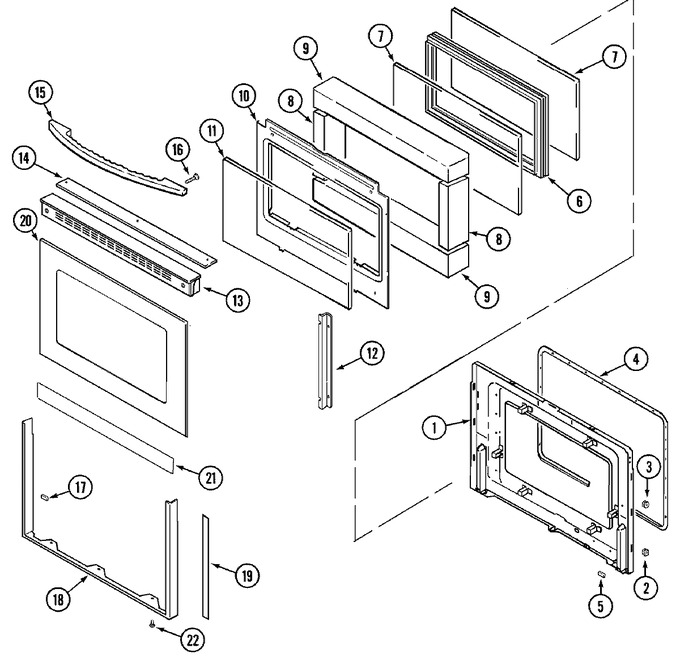

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003642		Lining, Door	10	Appelez-nous	-
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
2	74003643		Nut, Snap (square-blk)	10			$ 8.02
3	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
6	74003644		Frame, Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74003664		Tape, Foil 29`` X 2``	10	Appelez-nous	-
9	74003647		Insulation, Oven Door	10	Appelez-nous	-
10	74003648		Baffle, Door	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74003649		Glass, Door	10	Appelez-nous	-
12	74003650		Retainer, Glass	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
13	WP74003653		Trim, Door Top (wht)----s   (Replaces: 74004560)	10			$ 189.23
14	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
14	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
15	74003620		Handle, Door (wht)	10			$ 89.87
16	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
17	WP74004224		Tape, Single Sided (wht)   (Replaces: 74004224)	10			$ 10.53
18	74004325		Frame, Door (wht)	10	Appelez-nous	-
18	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74004562		Glass, Door (wht)	10	Appelez-nous	-
