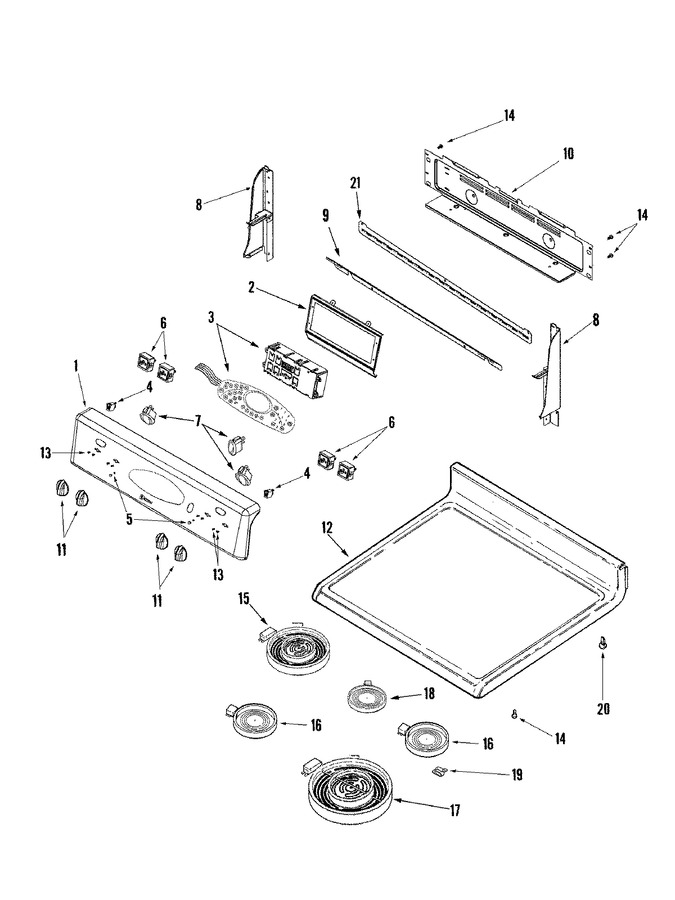

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010055		Panel, Control (wht)	10	Appelez-nous	-
2	74010058		Bracket, Clock (h2)	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74009981		Control/switch Assembly (wht)	10	Appelez-nous	-
4	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
5	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
6	WP74003122		Switch, Infinite (dual)   (Replaces: 74003122)	10		Immediately	$ 73.53
6	WP74008940		Switch, Infinite (flex)   (Replaces: 74008940)	10		Immediately	$ 125.54
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
7	WP74010226		Switch, Rocker (wht)   (Replaces: 74008938)	10			$ 86.45
8	74009672		Support, Backguard (wht-rt)	10	Appelez-nous	-
8	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
8	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
8	74009669		Support, Backguard (wht-lt)	10	Appelez-nous	-
9	74009978		Shield, Wire	10	Appelez-nous	-
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
10	74010804		Cover, Backguard Wire	10	Appelez-nous	-
10	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
11	WP74008947		Knob (wht/chr)   (Replaces: 74008947)	10			$ 18.70
12	74010031		Top, Main (wht)	10	Appelez-nous	-
13	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74009898		Element, Dual (2400w)	10			$ 157.27
16	W10823711		Element (1200w)   (Replaces: 74008568)	10		Immediately	$ 183.95
17	W10823713		Element (2700w)   (Replaces: 74008919)	10		Immediately	$ 330.41
18	WP74009899		Element, Warm (250v)   (Replaces: 74009899)	10			$ 153.85
19	74003072		Support, Ceramic Element	10	Appelez-nous	-
20	W11189172		Glide, Main Top   (Replaces: 74004558)	10		Immediately	$ 15.09
21	74009701		Shield, Rear Sight	10	Appelez-nous	-
21	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
