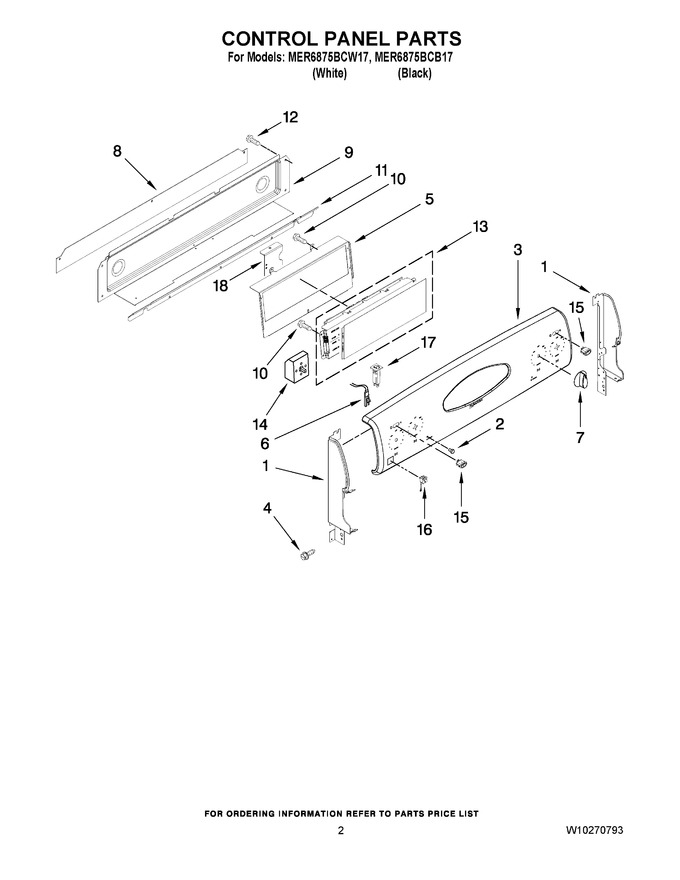

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Rack And Element Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3807F734-70		Support, Backguard (left)				$ 18.35
1	3807F733-70		Support, Backguard (right)				$ 27.86
2	WP7730P011-60		Lens, Indicator   (Replaces: 7730P011-60)				$ 5.16
3	2602D356-09		Panel, Control (black)		Appelez-nous	-
3	2602D356-81		Panel, Control (white)		Appelez-nous	-
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
5	3801F851-51		Bracket, Control				$ 79.10
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.02
7	WP74008947		Knobs (white (4))   (Replaces: 7737P234-60)				$ 18.70
7	7737P232-60		Knobs (black (4))		Appelez-nous	-
8	3604F387-51		Shield, Sight				$ 5.02
9	4005F803-51		Cover, Rear Wire				$ 19.75
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
11	3604F405-51		Shield, Wire				$ 11.78
12	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
13	5701M799-60		Control Assy (incl. Membrane) (black)				$ 446.74
13	5701M797-60		Control Assy (incl. Membrane) (white)				$ 446.81
14	WP74010824		Switch, Infinite (rf   (Replaces: 7450P011-60)			Immediately	$ 100.92
14	WP74008940		Switch, Infinite (lr,rr (2))   (Replaces: 7403P877-60)			Immediately	$ 125.54
14	7450P095-60		Switch, Infinite (lf)		Appelez-nous	-
15	7403P985-60		Switch, Rocker (black)				$ 82.20
15	WP74010226		Switch, Rocker (white)   (Replaces: 7403P926-60)				$ 86.45
16	7408P056-60		Receptacle, Outlet		Appelez-nous	-
17	7429P007-60		Breaker, Circuit		Appelez-nous	-
18	3801F930-51		Bracket, Vent Extension		Appelez-nous	-
