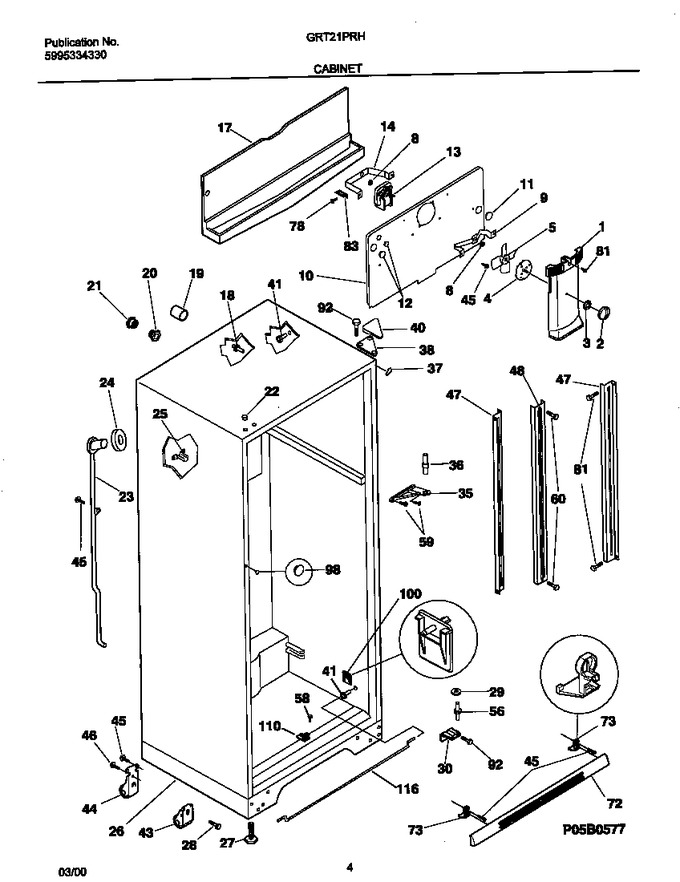

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304402655		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	218802800		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	218878801		Motor-evap Fan				$ 215.28
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	5303001470		Trough-drain		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303210377		Tube-drain, W/seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
26	218605102		Base-cabinet, Almond		Appelez-nous	-
27	5303212922		Screw-leveling				$ 10.71
28	5303271412		Bolt-roller Adj,hex Hd Sems ,1/4-28 X 2.750,(2)				$ 37.64
30	218220203		Bracket-lower Hinge,zinc Chromate				$ 104.71
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
40	3206105		Cover-upper Hinge, Almond				$ 60.90
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	218703001		Roller Assy,front ,(2)				$ 58.41
44	218713600		Roller Assy,rear ,(2)				$ 32.75
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-roller Mtg,hex Wshr Hd ,1/4-28 X 0.500,(2)		Appelez-nous	-
47	218233300		Channel-shelf Mtg,side ,(2)				$ 86.05
48	5303292395		Channel-shelf Mtg,center				$ 157.34
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
72	218916405		Grille/kickplate,almond ,w/fasteners		Appelez-nous	-
73	218896704		Fastener-grille,clip ,(2)				$ 17.77
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button,almond		Appelez-nous	-
100	5303288973		Support-pan Cover				$ 24.41
110	215363501		Support - Crisper Rod				$ 35.02
116	215426703		Rod-crisper Support		Appelez-nous	-
*52246	218666700		Washer, .28 X .62 X .03, Nylon		Appelez-nous	-
*52247	218605200		Tapping Plate/gusset,rh		Appelez-nous	-
*52248	218605300		Tapping Plate/gusset,lh		Appelez-nous	-
*52249	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
*52250	218905701		Cover-sound Insul,pressboard/foam,mach Compt				$ 64.93
*52252	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
*52253	5308016571		Plug-button,cab Liner Holes				$ 4.79
12A	215079000		Plug-harness Hole, Round				$ 8.61
12B	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
29A	218875801		Washer,nylon ,0.245 Id W/nibs				$ 9.40
29B	5308011326		Washer, .34 X .62 X .02, Nylon				$ 9.87
