SELECT A DIAGRAM

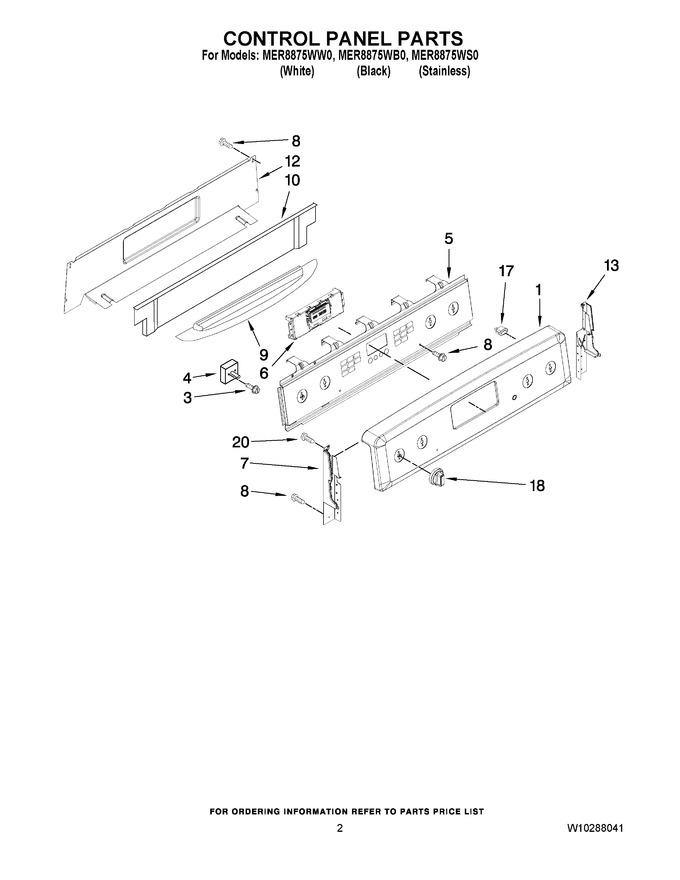

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10097280		Panel, Backguard (black)				$ 119.25
1	W10097270		Panel, Backguard (white)				$ 118.50
1	W10097310		Panel, Backguard (stainless Steel)				$ 116.84
3	WP3400882		Screw, Switch (10)   (Replaces: 3400882)			Immediately	$ 6.47
4	WPW10169580		Switch, Infinte (triple (rf))   (Replaces: W10169580)			Immediately	$ 207.91
4	5500-287		Switch, Infinte ((rr))   (Replaces: 3148951)			Immediately	$ 47.15
4	WPW10149355		Switch, Infinte (dual (lf))   (Replaces: W10149355)			Immediately	$ 184.42
4	5500-287		Switch, Infinte ((lr))   (Replaces: 3148953)			Immediately	$ 47.15
5	W10207494		Active Overlay				$ 259.88
6	W10157249		Control				$ 346.86
7	W10163969		End Cap, Left (black)				$ 34.61
7	W10163967		End Cap, Left (white)				$ 32.00
8	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
9	3604F382-81		Shield, Heat Visor (white)				$ 32.49
9	3604F382-09		Shield, Heat Visor (black)				$ 50.83
10	3604F381-19		Shield, Vent				$ 31.31
12	W10243038		Cover, Rear Wire				$ 49.02
13	W10163970		End Cap, Right (black)				$ 34.76
13	W10163968		End Cap, Right (white)		Appelez-nous	-
17	3149360		Switch, Rocker				$ 89.01
18	WPW10211371		Knob (4) (white/chrome)   (Replaces: W10211371)			Immediately	$ 18.20
18	W11193834		Knob (4) (black/chrome)   (Replaces: W10211372)				$ 76.27
18	W10211374		Knob (4) (stainless Steel)				$ 68.94
20	WP98008545		Screw (2) (black)   (Replaces: 7101P633-60)				$ 15.94
20	7101P663-60		Screw (2) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
