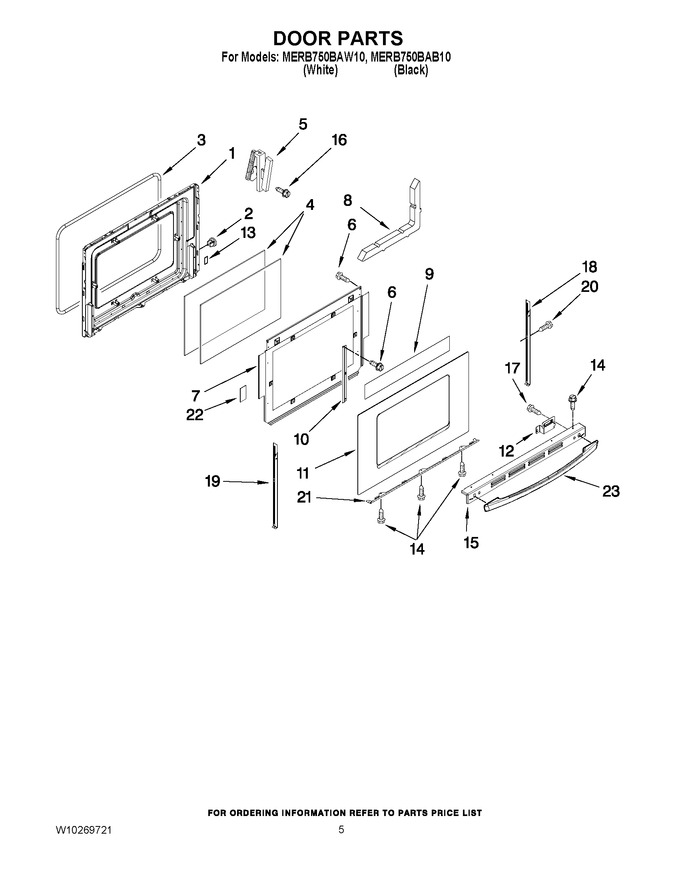

04 - Door Parts


05 - Rack And Element Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W312-19		Lining, Door				$ 144.50
2	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
3	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)			Immediately	$ 77.61
4	7902P468-60		Glass, Inner		Appelez-nous	-
5	74011142		Hinge, Door (2)   (Replaces: 7106P141-60)			Immediately	$ 108.22
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
7	3601F373-45		Baffle, Door		Appelez-nous	-
8	7002P246-60		Insulation, Door				$ 58.49
9	8270P133-60		Foil, Tape		Appelez-nous	-
10	3804F144-45		Retainer, Glass		Appelez-nous	-
11	12002396		Kit, Door Glass (incl. Foil Tape) (white)				$ 193.14
11	12002395		Kit, Door Glass (incl. Foil Tape) (black)				$ 164.64
12	3801F832-45		Bracket, Handle (left)				$ 19.12
12	3801F831-45		Bracket, Handle (right)				$ 19.17
13	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
14	WP74006515		Screw W/washer   (Replaces: 7101P543-60)				$ 7.29
15	3608F141-71		Trim, Door Top (white)				$ 98.12
15	3608F141-70		Trim, Door Top (black)				$ 96.37
16	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
17	7101P208-60		Screw, Handle (2)				$ 11.92
18	WP3608F116-71		Trim, Door (rt) (white)   (Replaces: 3608F116-71)				$ 112.01
18	3608F116-70		Trim, Door (rt) (black)				$ 49.75
19	3608F117-70		Trim, Door (lt) (black)				$ 49.73
19	3608F177-71		Trim, Door (lt) (white)		Appelez-nous	-
20	WP98008545		Screw, Trim   (Replaces: 7101P633-60)				$ 15.94
21	3807F708-70		Support, Glass				$ 63.97
22	WP74004224		Tape   (Replaces: 8270P139-60)				$ 10.53
23	7701P531-60		Handle, Door (white)		Appelez-nous	-
23	7701P533-60		Handle, Door (black)		Appelez-nous	-
