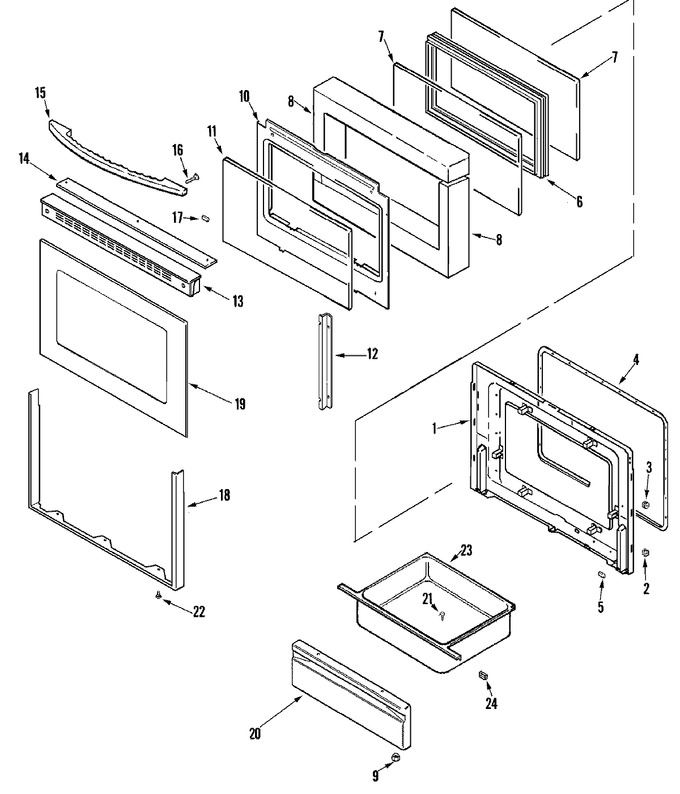

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003642		Lining, Door	10	Appelez-nous	-
2	74003643		Nut, Snap (square-blk)	10			$ 8.02
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
6	74003644		Frame, Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74003647		Insulation, Oven Door	10	Appelez-nous	-
9	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74003648		Baffle, Door	10	Appelez-nous	-
11	74003649		Glass, Door	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74003650		Retainer, Glass	10	Appelez-nous	-
13	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
13	74006401		Trim, Door Top (wht)	10	Appelez-nous	-
14	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
14	74001278		Screw (wht)	10			$ 5.83
15	74006381		Handle, Door (wht)	10			$ 82.26
16	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
17	5304537073		Tape, Dbl. Sided (wht)   (Replaces: 71002092)	10			$ 0.75
18	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
18	74004325		Frame, Door (wht)	10	Appelez-nous	-
19	74006404		Glass, Door (wht)	10	Appelez-nous	-
20	74003399		Panel, Drawer (wht)	10	Appelez-nous	-
21	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
22	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
23	71003042		Drawer, Storage	10	Appelez-nous	-
24	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	10			$ 11.95
