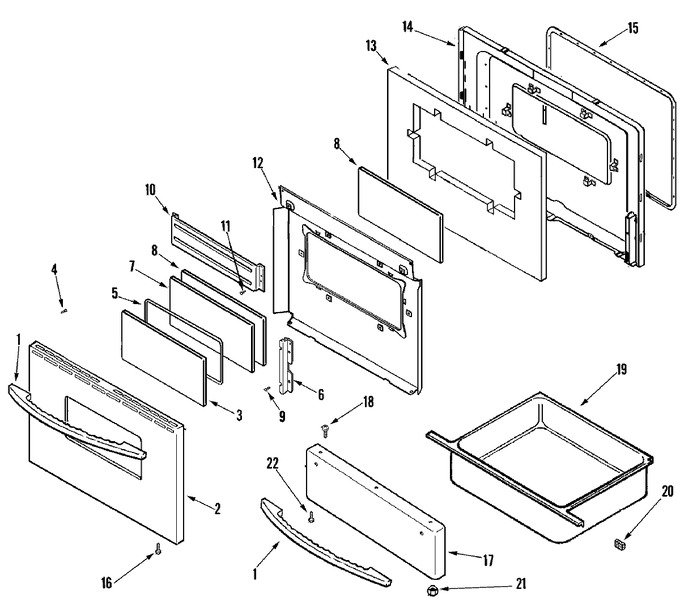

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006293		Handle, Door (blk)	10	Appelez-nous	-
2	74006580		Panel, Door (stl)	10	Appelez-nous	-
3	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
4	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	74001521		Washer (1``)	10			$ 5.27
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
12	74001843		Baffle, Door	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74006596		Insulation, Oven Door	10	Appelez-nous	-
14	74003244		Lining, Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74006572		Panel, Drawer (stl)	10	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
19	71003042		Drawer, Storage	10	Appelez-nous	-
20	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	10			$ 11.95
21	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
22	74003975		Screw (8abx3/8-blk)	10			$ 12.02
