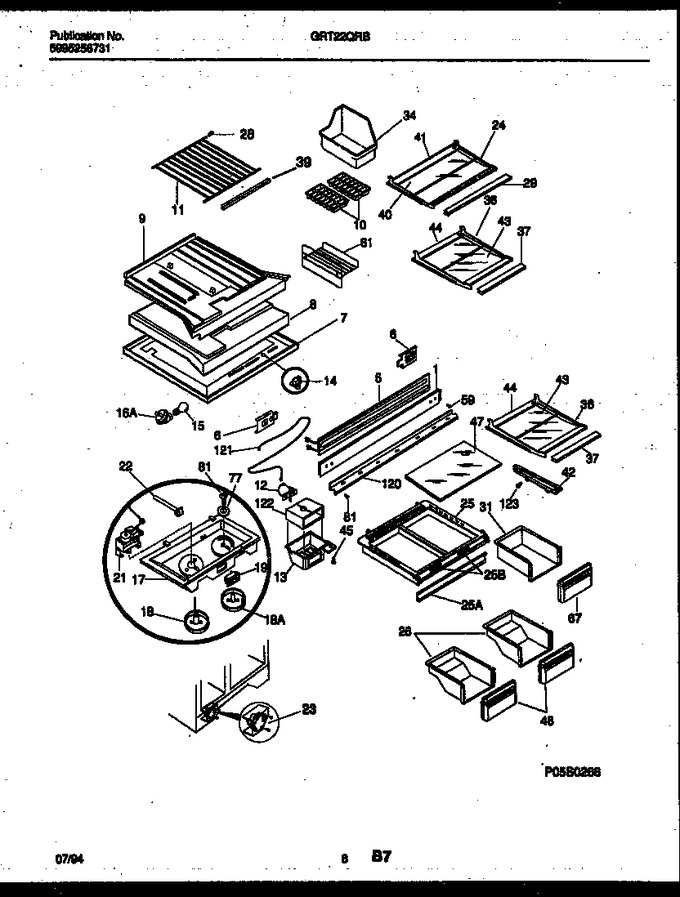

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	215096700		Tapping Plate,mullion Mtg,(2)		Appelez-nous	-
7	215055803		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303294244		Shelf-freezer		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215932903		Box-control		Appelez-nous	-
18	5303296667		Knob-temp Control,refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303305487		Control, Temperature		Appelez-nous	-
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
24	215919142		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215216612		Cover-crisper Pan, With Beam, Trim Humid Cont		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		Cap-protector				$ 2.54
29	215919506		Trim-full Shelf, Front		Appelez-nous	-
31	5303292388		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919141		Frame-half Shelf,cantilever		Appelez-nous	-
37	215919512		Trim-half Shelf, Front		Appelez-nous	-
39	5303300780		Trim-frzr Shelf		Appelez-nous	-
40	215723558		Glass-full Shelf		Appelez-nous	-
41	215919806		Trim-full Shelf, Rear		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
43	215723560		Glass-half Shelf, (2)		Appelez-nous	-
44	215919812		Trim-half Shelf, Rear,(2)				$ 29.03
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	215058504		Front-crisper Pan, Lh		Appelez-nous	-
46	215058503		Front-crisper Pan, Rh		Appelez-nous	-
47	5303304624		Insert-pan Cover, Glass				$ 185.12
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	215060203		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019201		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	215132501		Block-air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
79508	215848000		Spacer-air Channel		Appelez-nous	-
79508	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	215934600		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
121A	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
12A	215363800		Spacer-air Deflectr(non-illustrated)		Appelez-nous	-
12B	215363900		Washer-air Deflectr (non-illustrated)		Appelez-nous	-
13A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	215935700		Nut-anchor,control Box Mtg (non-illustrated)		Appelez-nous	-
18A	5303296668		Knob-temp Control,frzr		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23C	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
25A	5303298486		Trim, Crisper Cover		Appelez-nous	-
25B	5303301393		Control-humidity		Appelez-nous	-
42A	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
7A	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
