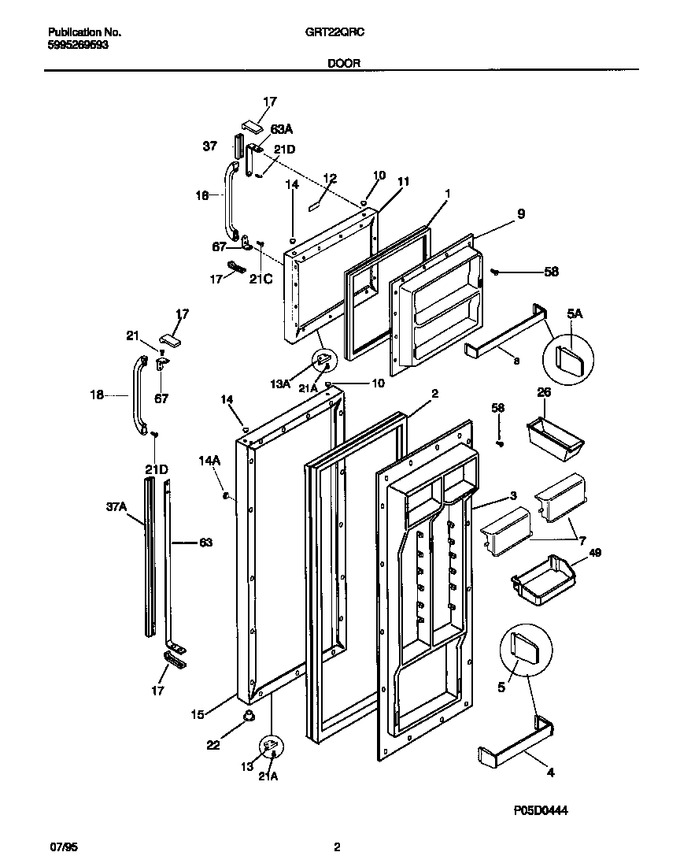

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776715		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732417		Gasket, Refr Door, White, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	218027063		Rack-door		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	215058108		Door-dairy, (2)		Appelez-nous	-
8	218027064		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215676801		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215220201		Frame-nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	215677001		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215361301		Handle End, White				$ 21.70
18	215339601		Handle-door, White		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215117412		Trim-handle, 5.14``,white,upper		Appelez-nous	-
49	5303310709		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215369703		Rail-handle Trim Mtg, 29.19``		Appelez-nous	-
67	215367300		Bracket-handle Mtg,(2)		Appelez-nous	-
*93360	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220329		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12B	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
13A	215030001		Door Stop, White, Frzr				$ 29.61
14A	215562101		Plug-button, White, Refr Door Front		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21C	215416100		Screw-handle/brkt, Flat Head, Cr, 10-32 X 7/16		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
37A	215117416		Trim-handle,27.95``,white,lower		Appelez-nous	-
49A	5303310710		Bin-door, 2-liter		Appelez-nous	-
5A	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
63A	215369701		Rail-handle Trim Mtg ,6.48``		Appelez-nous	-
