Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP74008763 Rack, Oven   (Replaces: 74008763) Special Order $ 192.14

2 WP74005546 Spacer, Rubber   (Replaces: 74005546) Special Order $ 9.48

3 WP3405F037-80 Drawer, Storage   (Replaces: 3405F037-80) Special Order $ 304.98

4 W11233072 Screw, 8ab 1/2   (Replaces: 74002979) In-Stock Immediately $ 12.62

5 3605P337-51 Panel, Inner Special Order $ 48.45

6 W10163038 Panel, Drawer (black) Special Order $ 18.28

6 W10163040 Panel, Drawer (white) Special Order $ 26.62

6 W10163041 Panel, Drawer (bisque) Special Order $ 19.66

7 74008688 Stop, Drawer Special Order $ 5.02

8 W11233072 Screw   (Replaces: 74009268) In-Stock Immediately $ 12.62

9 74008687 Runner, Drawer Appelez-nous -
10 74005231 Shaft, Roller Special Order $ 9.23

11 WP74004078 Roller, Drawer   (Replaces: 74004078) In-Stock Immediately $ 10.70

12 74005230 Nut, Lock Special Order $ 12.02


    View Diagram in Separate Window     Print Icon   Print Part List

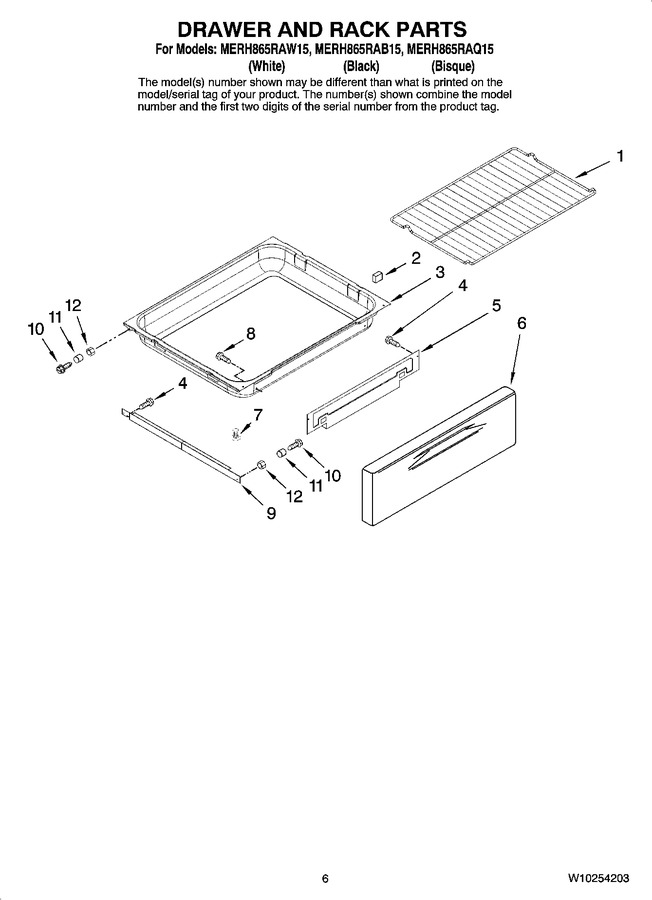

Diagram for MERH865RAQ15
